SGConn 2UB30XX/ 2UP30XX系列 USB防水连接器
USB Type-A, USB Type-B, USB Type-C, IP67 Waterproof Connector
產品應用：工業用控制面板、戶外電子廣告牌/戶外電子標誌、電動自行車、量測機具、警報系統、農用機具
规格简介
- 连接器型式: USB2.0, USB Type-C Waterproof Connector
- 组装型式: Panel Mount, Molded with Cable, Field Installable
- 防水等级: IP67 Waterproof Connectors
- 适用电流: 30V/ 1A
- 温度范围: -20°C~80°C
- 材质: [Conn. Body] Nylon+ GF, PPE, UL Recognized; [Pin] Copper Alloy, Gold Plated; [Shield] Copper Alloy, Nickel Plated
更多讯息
更多连接器 •••
「SGConn」全系列防水连接器 提供包括
Circular圆形防水连接器,
Quick-Lock 圆形快锁式防水连接器,
M8 /
M12系列防水连接器,
USB防水连接器,
USB Charger防水连接器 ,
RJ45防水连接器,
Cable Gland电缆防水连接器,
LEV/E-bike电动自行车用防水连接器,
NMEA 2000 船用电子防水连接器 等类型，并具有IP66, IP67, IP68 防水等级。
点选清单
| 产品图文件 |
加入 |
产品型号 |
产品图文件 |
产品名称 |
产品说明 |
适用电流 |
防水等级 |
2D图说 |
|
|

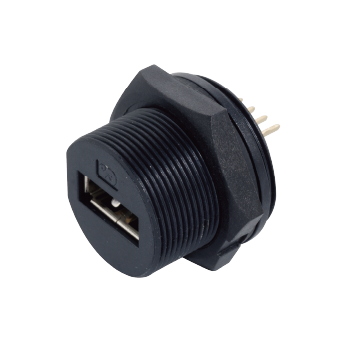

2UB3001-W05113H
|
|
USB (Panel Mount) Connector
|
USB 2.0 A Jack; Screw Mating; Panel Thickness: max 4.0mm; Panel Cut: Ø20.8mm x 19.5mm
|
1A
|
IP67
|
|
|
|
2UP3000-W05100H
|
|
USB (Field Installable (Solder)) Connector
|
USB 2.0 A Plug; Screw Mating; Seals for Cable OD Ø3.0mm~6.0mm
|
1A
|
IP67
|
|
|
|

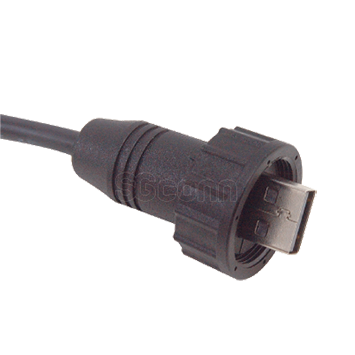

2UP3002-W05100H
|
|
USB (Molded with Cable) Connector
|
USB 2.0 A Plug; 180°C Screw Mating; Cable ODØ: max 5.0mm
|
1A
|
IP67
|
|
|
|

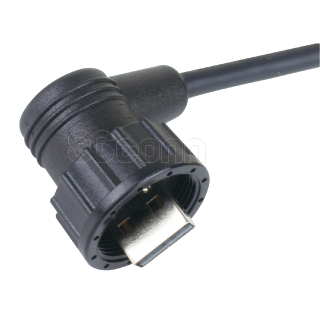

2UP3005-W05100H
|
|
USB (Molded with Cable) Connector
|
USB 2.0 A Plug; 90°C Screw Mating; Cable ODØ: max 5.0mm
|
1A
|
IP67
|
|
|
|

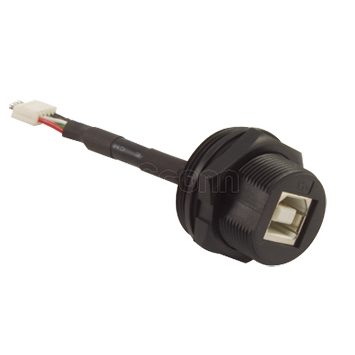

2UB3003-W05100
|
|
USB (Panel Mount) Connector
|
USB 2.0 B Jack; Screw Mating; Panel Thickness: max 4.0mm; Panel Cut: Ø20.8mm x 19.5mm
|
1A
|
IP67
|
|
|
|

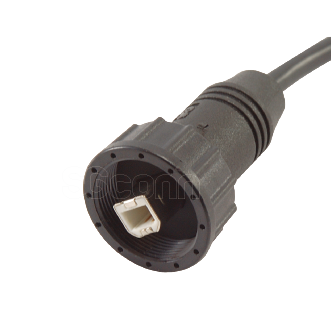

2UP3004-W05100H
|
|
USB (Molded with Cable) Connector
|
USB 2.0 B Plug; 180°C Screw Mating; Cable ODØ: max 5.0mm
|
1A
|
IP67
|
|
|
|

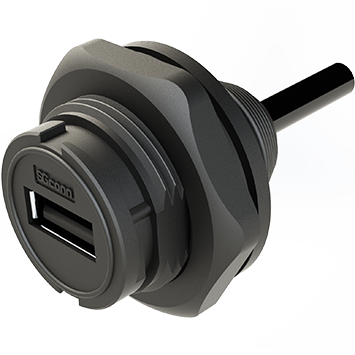

2UB3012-W05100H
|
|
USB (Panel Mount Molded with Cable) Connector
|
USB 2.0 A Jack; 2 Point Lock Mating; Panel Thickness: max 2.5mm; Panel Cut: Ø25.2mm x 24mm
|
1A
|
IP67
|
|
|
|
2UP3014-W05100H
|
|
USB (Molded with Cable) Connector
|
USB 2.0 A Plug; 180°C 2 Point Lock Mating; Cable ODØ: max 4.7mm
|
1A
|
IP67
|
|
|
|

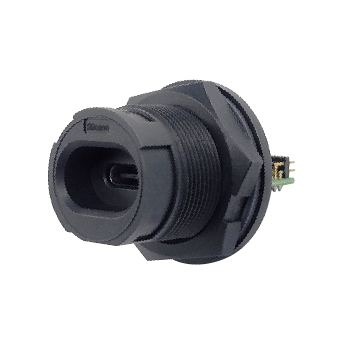

2UB3040-W24300H
|
|
USB 2.0 Type-C (Panel Mount) Connector
|
Type C Jack;PCB Type ; 3 Point Lock Mating; Panel Thickness: max 1.9mm; Panel Cut: Ø20.8mm x 19.5mm
|
5A
|
IP67
|
|
|
|

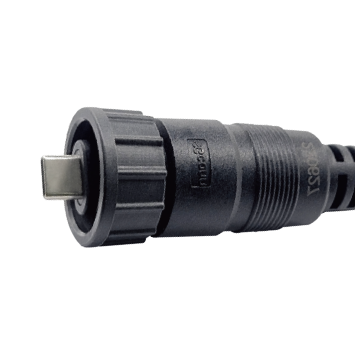

2UP3040-W24300H
|
|
USB 2.0 Type-C (Molded with Cable) Connector
|
Type C Plug; 180°C 3 Point Lock Mating; Cable ODØ: max 5.5mm
|
5A
|
IP67
|
|
|
|

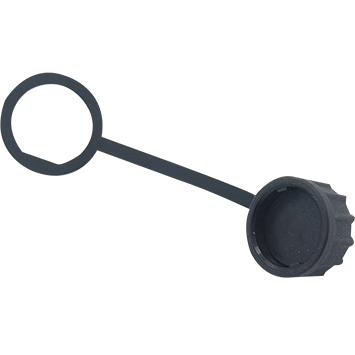

2UB3001-W0000W
|
|
USB Waterproof Cap
|
Accessory of USB Connector For Screw Type
|
|
IP67
|
|
|
|

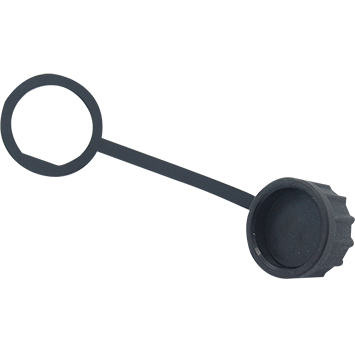

2UB3001-W0009WH
|
|
USB Waterproof Cap
|
Accessory of USB Connector For 3 Point Lock Type
|
|
IP67
|
|
