SGConn 2UB30XX/ 2UP30XX系列USB防水連接器
USB Type-A、USB Type-B、USB Type-C、IP67防水連接器
產品應用：工業用控制面板、戶外電子廣告牌/戶外電子標誌、電動自行車、量測機具、警報系統、農用機具
規格簡介
- 連接器型式：USB2.0、USB Type-C 防水連接器
- 整體型式：面板安裝、電纜成型、現場安裝
- 防水等級：IP67防水連接器
- 適用電流：30V/1A
- 溫度範圍：-20°C~80°C
- 材質：[Conn。主體] Nylon+ GF、PPE、UL 認可；[別針] 銅合金，鍍金；[屏蔽] 銅合金，鍍
更多訊息
更多連接器 ···
「SGConn」全系列防水連接器 提供包括
Circular圓形防水連接器,
Quick-Lock 圓形快鎖式防水連接器,
M5,
M8 /
M12系列防水連接器,
USB防水連接器,
USB Charger防水連接器,
RJ45防水連接器,
Cable Gland電纜防水連接器,
LEV/E-bike電動自行車用防水連接器,
NMEA 2000 船用電子防水連接
器 等類型，並具有IP66, IP67, IP68 防水等級。
點選清單
| 產品圖檔 |
加入 |
產品型號 |
產品圖檔 |
產品名稱 |
產品說明 |
適用電流 |
防水等級 |
2D圖說 |
|
|
2UB3001-W05113H
|
|
USB (Panel Mount) Connector
|
USB 2.0 A Jack; Screw Mating; Panel Thickness: max 4.0mm; Panel Cut: Ø20.8mm x 19.5mm
|
1A
|
IP67
|
|
|
|
2UP3000-W05100H
|
|
USB (Field Installable (Solder)) Connector
|
USB 2.0 A Plug; Screw Mating; Seals for Cable OD Ø3.0mm~6.0mm
|
1A
|
IP67
|
|
|
|
2UP3002-W05100H
|
|
USB (Molded with Cable) Connector
|
USB 2.0 A Plug; 180°C Screw Mating; Cable ODØ: max 5.0mm
|
1A
|
IP67
|
|
|
|
2UP3005-W05100H
|
|
USB (Molded with Cable) Connector
|
USB 2.0 A Plug; 90°C Screw Mating; Cable ODØ: max 5.0mm
|
1A
|
IP67
|
|
|
|
2UB3003-W05100
|
|
USB (Panel Mount) Connector
|
USB 2.0 B Jack; Screw Mating; Panel Thickness: max 4.0mm; Panel Cut: Ø20.8mm x 19.5mm
|
1A
|
IP67
|
|
|
|
2UP3004-W05100H
|
|
USB (Molded with Cable) Connector
|
USB 2.0 B Plug; 180°C Screw Mating; Cable ODØ: max 5.0mm
|
1A
|
IP67
|
|
|
|
2UB3012-W05100H
|
|
USB (Panel Mount Molded with Cable) Connector
|
USB 2.0 A Jack; 2 Point Lock Mating; Panel Thickness: max 2.5mm; Panel Cut: Ø25.2mm x 24mm
|
1A
|
IP67
|
|
|
|
2UP3014-W05100H
|
|
USB (Molded with Cable) Connector
|
USB 2.0 A Plug; 180°C 2 Point Lock Mating; Cable ODØ: max 4.7mm
|
1A
|
IP67
|
|
|
|
2UB3040-W24300H
|
|
USB 2.0 Type-C (Panel Mount) Connector
|
Type C Jack;PCB Type ; 3 Point Lock Mating; Panel Thickness: max 1.9mm; Panel Cut: Ø20.8mm x 19.5mm
|
5A
|
IP67
|
|
|
|
2UP3040-W24300H
|
|
USB 2.0 Type-C (Molded with Cable) Connector
|
Type C Plug; 180°C 3 Point Lock Mating; Cable ODØ: max 5.5mm
|
5A
|
IP67
|
|
|
|

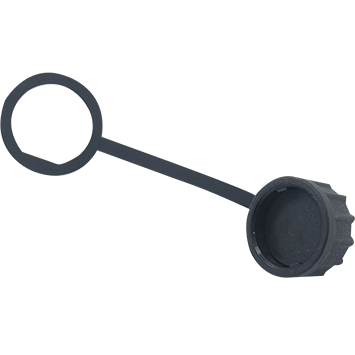

2UB3001-W0000W
|
|
USB Waterproof Cap
|
Accessory of USB Connector For Screw Type
|
|
IP67
|
|
|
|
2UB3001-W0009WH
|
|
USB Waterproof Cap
|
Accessory of USB Connector For 3 Point Lock Type
|
|
IP67
|
|
