防水連接器
SGConn®, for Singatron's IP65~68 Waterproof Connectors 信音防水連接器品牌
信音集團成立於1976年，為全球電子產業開發及製造各式電子連接器，近年為滿足防水連接器市場的成長需求，2012年自一般消費性電子用連接器成功跨足防水連接器的開發製造，並於2014年為防水全系列產品推出新品牌⌈SGConn®⌋，防水係數可達IP65~IP68等級，可適用於船用電子、戶外影音看板、戶外照明系統、戶外通訊設備及保全監控設備、工業電子、電動車等應用領域。信音積極的導入5S與6-Sigma管理態度，以誠信及以客為尊的理念，取得了UL、VDE與NMEA2000等國際規範認可，同時亦符合多項國際認証及歐盟RoHS環保要求，給予全球客戶及應用前端產業提供整體和迅速的防水決解方案。
Circular圓形防水連接器 IP66, IP67, IP68 防水等級,
Mini Size/ Standard Size/ Middle Size/ Large Size
圓形快鎖式(Quick-Lock)防水連接器 IP66, IP67 防水等級,
Hook-Lock勾式快鎖/ Push-Lock壓式快鎖
RJ45 防水連接器 (CAT-5e/ CAT-6) IP67 防水等級

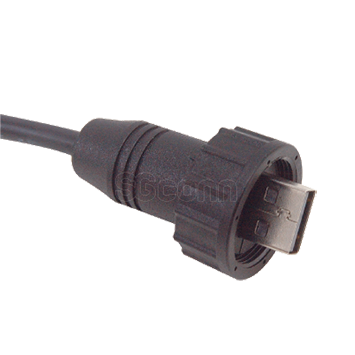

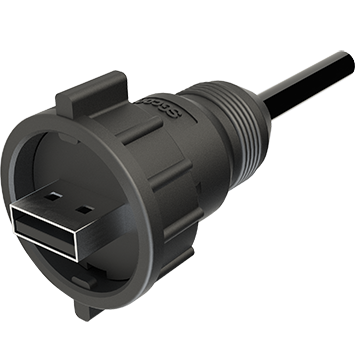

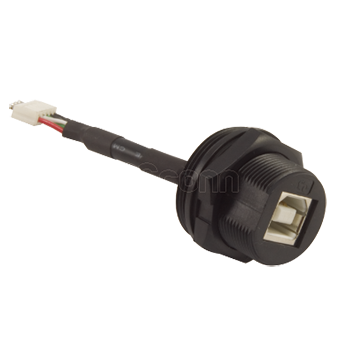

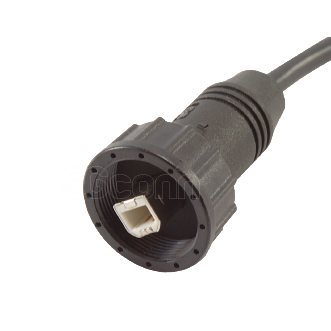

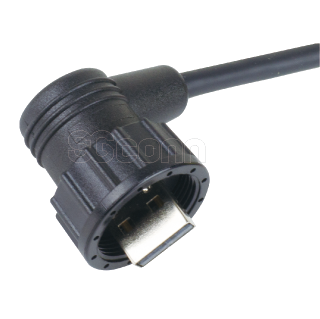

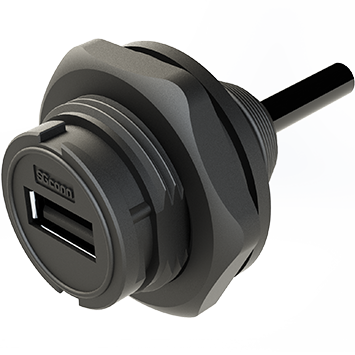

USB 防水連接器 (Type-A/ Type-B) IP67 防水等級
USB Charger 防水連接器 IP67 防水等級
Cable Gland/ Cable Joint 防水連接器 IP67 防水等級
NMEA2000 船用電子防水連接器 IP67 防水等級
LEV輕型電動車用防水連接器 IP66, IP67 防水等級
1-28 of 197
Next 28 >>
| 產品圖檔 | 產品型號 | 產品圖檔 | 產品名稱 | 產品說明 | 公母 (座/ 端子) | 適用電流 | 端子數 | 防水等級 | 2D圖說 |
|---|---|---|---|---|---|---|---|---|---|
|
2CN3000-X08200
|
|
Circular Mini (Panel Mount) Connector
|
Lock mating; PCB pin; Panel Thickness: max 3.2mm; Panel Cut: Ø10.9mm x 10.4 mm
|
Male/ Male
|
2A
|
8 Pins
|
IP67
|
|
|
|
2CN3002-X0X200
|
|
Circular Mini (Panel Mount) Connector
|
Lock mating; Solder pin; Panel thickness: max 3.2mm; Panel Cut: Ø10.9mm x 10.4 mm
|
Male/ Male
|
2A
|
3,4,5,6 Pins
|
IP67
|
|
|
|
2CN3032-X0X200
|
|
Circular Mini (Field Wiring with Solder Pin) Connector
|
Lock Mating; Cable OD Ø4.0mm~Ø6.5mm
|
Female/ Female
|
2A
|
3,4,5,6 Pins
|
IP67
|
|
|
|
2CT3000-X1X200
|
|
Circular Standard (Panel Mount) Connector
|
Lock Mating; PCB Pin; Panel Thickness: max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
|
Male/ Male
|
2A
|
10,12 Pins
|
IP67
|
|
|
|
2CT3000-X0X300
|
|
Circular Standard (Panel Mount) Connector
|
Lock Mating; PCB Pin; Panel Thickness: max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
|
Male/ Male
|
5A
|
4,5,6,7,8 Pins
|
IP67
|
|
|
|
2CT3000-X0X400
|
|
Circular Standard (Panel Mount) Connector
|
Lock Mating; PCB Pin; Panel Thickness: max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
|
Male/ Male
|
10A
|
2,3,4 Pins
|
IP67
|
|
|
|
2CT3002-X1X200
|
|
Circular Standard (Panel Mount) Connector
|
Lock Mating; Solder Pin; Panel Thickness: max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
|
Male/ Male
|
2A
|
10,12 Pins
|
IP67
|
|
|
|
2CT3002-X0X300
|
|
Circular Standard (Panel Mount) Connector
|
Lock Mating; Solder Pin; Panel Thickness: max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
|
Male/ Male
|
5A
|
4,5,6,7,8 Pins
|
IP67
|
|
|
|
2CT3002-X0X400
|
|
Circular Standard (Panel Mount) Connector
|
Lock Mating; Solder Pin; Panel Thickness: max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
|
Male/ Male
|
10A
|
2,3,4 Pins
|
IP67
|
|
|
|
2CT3014-X03400
|
|
Circular Standard (Panel Mount) Connector
|
Lock Mating; Solder Pin; Panel Thickness: Max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
|
Male/ Female
|
10A
|
3 Pins
|
IP67
|
|
|
|
2CT3020-X034A0
|
|
Circular Standard (Panel Mount) Connector
|
Lock Mating; Solder Pin; Square Backshell
|
Male/ Female
|
10A
|
3 Pins
|
IP67
|
|
|
|
2CT3020-X048A0
|
|
Circular Standard (Panel Mount) Connector
|
Lock Mating; Solder Pin; Square Backshell
|
Male/ Female
|
5+10A
|
2+2 Pins
|
IP55
|
|
|
|
2CT3014-X01H00H
|
|
Circular Standard (Panel Mount) Connector
|
Lock Mating; Screw Solder Pin; Panel Thickness: max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
|
Male/ Female
|
50A
|
1 Pin
|
IP65/ IP67
|
|
|
|
2CT3040-X0630X
|
|
Circular Standard (Panel Mount) Connector
|
Lock Mating; Panel Thickness: max 2.0mm; Panel Cut: Ø15.6mm x 14.8mm
|
Male/ Female
|
5A
|
6 Pins
|
IP67
|
|
|
|
2CT3004-X1X200
|
|
Circular Standard (Molded with Cable) Connector
|
180° Lock Mating; Cable ODØ: max 7.5mm
|
Female/ Female
|
2A
|
10,12 Pins
|
IP66, IP67
|
|
|
|
2CT3004-X0X300
|
|
Circular Standard (Molded with Cable) Connector
|
180° Lock Mating; Cable ODØ: max 7.5mm
|
Female/ Female
|
5A
|
4,5,6,7,8 Pins
|
IP66, IP67
|
|
|
|
2CT3004-X0X400
|
|
Circular Standard (Molded with Cable) Connector
|
180° Lock Mating; Cable ODØ: max 7.5mm
|
Female/ Female
|
10A
|
2,3,4 Pins
|
IP66, IP67
|
|
|
|
2CT3010-X1X200
|
|
Circular Standard (Molded with Cable) Connector
|
90° Lock Mating; Cable ODØ: max 6.5mm
|
Female/ Female
|
2A
|
10,12 Pins
|
IP66, IP67
|
|
|
|
2CT3010-X0X300
|
|
Circular Standard (Molded with Cable) Connector
|
90° Lock Mating; Cable ODØ: max 6.5mm
|
Female/ Female
|
5A
|
4,5,6,7,8 Pins
|
IP66, IP67
|
|
|
|
2CT3010-X0X400
|
|
Circular Standard (Molded with Cable) Connector
|
90° Lock Mating; Cable ODØ: max 6.5mm
|
Female/ Female
|
10A
|
2,3,4 Pins
|
IP66, IP67
|
|
|
|
2CT3016-X03400
|
|
Circular-Standard (Molded with Cable) Connector
|
180° Lock Mating; Cable ODØ: max 7.5mm
|
Female/ Male
|
10A
|
3 Pins
|
IP66, IP67
|
|
|
|
2CT3016-X0340X
|
|
Circular Standard (Molded with Cable) Connector
|
180° Lock Mating; Cable ODØ: max 7.5mm
|
Female/ Male
|
10A
|
3 Pins
|
IP66, IP67
|
|
|
|
2CT3016-X0480X
|
|
Circular Standard (Molded with Cable) Connector
|
180° Lock Mating; Cable ODØ: max 7.5mm
|
Female/ Male
|
5A+10A
|
2+2 Pins
|
IP55
|
|
|
|
2CT3016-X01H00H
|
|
Circular Standard (Molded with Cable) Connector
|
180° Lock Mating; Cable ODØ: max 9.0mm
|
Female/ Male
|
50A
|
1 Pins
|
IP65, IP67
|
|
|
|
2CT3024-X0X300
|
|
Circular Standard (Molded with Cable) Connector
|
180° Lock Mating; Cable ODØ: max 7.5mm
|
Male/ Male
|
5A
|
4,5,6,7,8 Pins
|
IP66, IP67
|
|
|
|
2CT3024-X0X400
|
|
Circular Standard (Molded with Cable) Connector
|
180° Lock Mating; Cable ODØ: max 7.5mm
|
Male/ Male
|
10A
|
2,3,4 Pins
|
IP66, IP67
|
|
|
|
2CT3028-X0X300
|
|
Circular Standard (Molded with Cable) Connector
|
90° Lock Mating; Cable ODØ: max 6.5mm
|
Male/ Male
|
5A
|
4,5,6,7,8 Pins
|
IP66, IP67
|
|
|
|
2CT3028-X0X400
|
|
Circular Standard (Molded with Cable) Connector
|
90° Lock Mating; Cable ODØ: max 7.5mm
|
Male/ Male
|
10A
|
2,3,4 Pins
|
IP66, IP67
|
|
