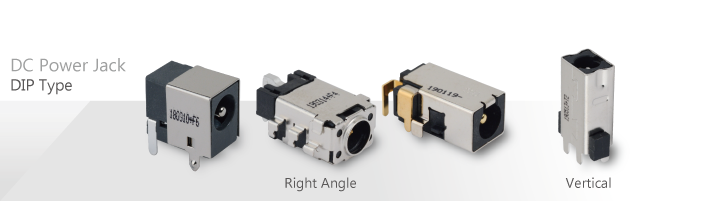

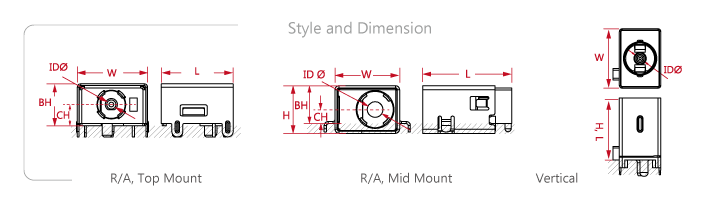

DC Power Jack 連接器 (DIP)
- PCB Mounting: DIP Type
- Mounting Type: Top Mount, Mid Mount
- Orientation: Right Angle, Vertical
No. 209, Sec. 2, Zhongzheng Rd., Hukou Township, Hsinchu County 303116, Taiwan
DC Power Jack Connectors
Featuring a direct plug-in design, these connectors provide stable mechanical strength and electrical connection, making them suitable for power supplies and various electronic devices.
Product Overview
Product Overview
Stable DC Power Output Design
Multiple Size and Voltage Options
Durable Mating Structure Design
Product Description
Specification Sheet
Related Applications
Product Description
Specification Sheet
Related Applications
Product Description
Product Description

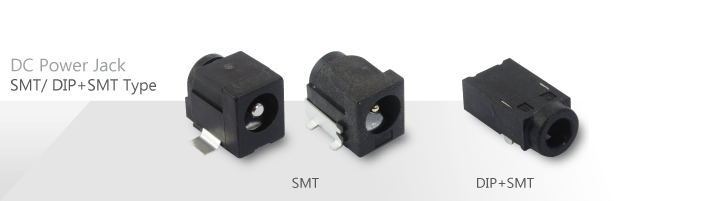

DC Power Jack 連接器 (SMT/ DIP+SMT)
- PCB Mounting: SMT, DIP+SMT Type
- Mounting Type: Top
- MountOrientation: Right Angle

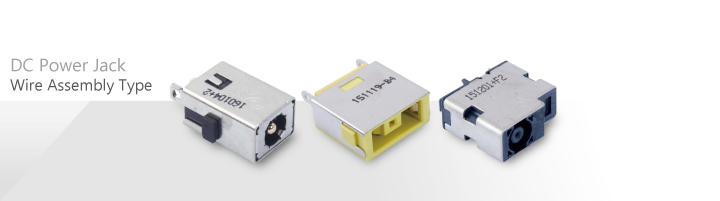

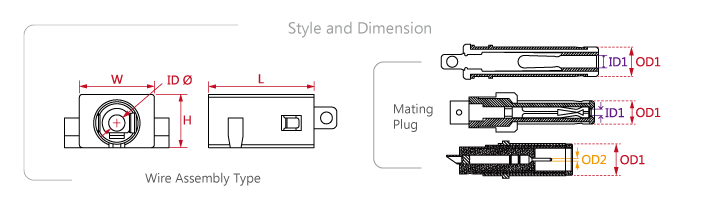

DC Power Jack 連接器 (Wire Assembly)
- PCB Mounting: Wire Assembly Type
Specifications
Specification Sheet
Filter Products
99+
Export Filtered Results
Search by Keyword
Filter Item
N/A
Right angle
Vertical
-2.1
-1.8
-1.77
-1.45
-1.1
-0.8
-0.65
0.5
0.8
0.83
1.3
1.38
1.9
2
2.25
3.5
4
5.5
5.72
6
6.3
6.5
6.55
6.6
7.6
10
N/A
0.85
1.95
2.35
2.4
2.5
2.6
2.7
2.8
3
3.53
3.7
4.05
4.25
4.27
5
5.25
6.05
7.2
8
9.5
9.75
11
14.5
15.8
N/A
10A/ 20V
11.5A/ 20V
20A/ 20V
3.9A/ 14V
3A/ 16V
3A/ 19V
3A/ 20V
4A/ 20V
5A/ 20V
5A/ 24V
5A/ 26V
7A/ 20V
8A/ 20V
N
N/A
Y
N/A
OD1Φ: 2.5mm
OD1Φ: 4.0mm
OD1Φ: 4.5mm
OD1Φ: 5.5mm
Confirm
No Matching Results
No results found
No products match your filters. Please adjust or reset your filters.
Swipe left or right to view
Product Image
Product
Description
Orientation
Center Height
PCB to Top Height
Rating
Switch
Mating Plug：OD
Additional Features
2DC-0005
DIP
Right angle
5.5
8
3A/ 16V
Y
N/A
2DC-0053
DIP
Right angle
2
4.05
10A/ 20V
N
N/A
2DC-G756
DIP
Right angle
3.5
7.2
5A/ 24V
Y
N/A
2DC-S005
DIP
Right angle
6.5
11
10A/ 20V
Y
N/A
2DC-0006
DIP
Right angle
6
9.5
7A/ 20V
Y
N/A
2DC-S756
DIP
Right angle
3.5
7.2
5A/ 26V
Y
N/A
2DC-S0A6
DIP
Right angle
6
9.75
5A/ 20V
Y
N/A
2DC3010
DIP
Right angle
4
8
7A/ 20V
Y
N/A
2DC3090
DIP
Vertical
N/A
15.8
3A/ 19V
N
N/A
2DC3012
DIP
Vertical
N/A
14.5
7A/ 20V
Y
N/A
2DC1016
DIP
Right angle
1.3
4.25
3A/ 19V
Y
N/A
2DC3028
DIP
Right angle
0.5
2.5
3A/ 20V
N
N/A
2DC3079
DIP
Right angle
-
2.6
5A/ 20V
N
N/A
2DC3064
DIP
Right angle
-0.8
2.8
5A/ 20V
Y
N/A
2DC3137
DIP
Right angle
0.8
3.7
5A/ 20V
N
N/A
2DC3195
DIP
Right angle
-2.1
0.85
5A/ 20V
N
N/A
2DC3074
DIP
Right angle
-0.65
2.35
5A/ 20V
N
N/A
2DC3061
DIP
Right angle
-1.1
2.7
5A/ 20V
Y
N/A
2DC3032
DIP
Right angle
-1.77
2.4
7A/ 20V
Y
N/A
2DC3006
DIP
Right angle
0.83
5
7A/ 20V
Y
N/A
2DC3011
DIP
Right angle
1.38
4.27
7A/ 20V
Y
N/A
2DC3092
DIP
Right angle
-1.45
3.53
10A/ 20V
N
N/A
2DC3157
DIP
Right angle
-1.8
1.95
10A/ 20V
Y
N/A
2DC3003
DIP
Right angle
2.25
6.05
10A/ 20V
Y
N/A
2DC3071
DIP
Right angle
-1.8
1.95
11.5A/ 20V
N
N/A
2DC3215
DIP
Right angle
1.9
5.25
20A/ 20V
N
N/A
2DC-0415
SMT
Right angle
6.55
11
3.9A/ 14V
N
OD1Φ: 5.5mm
2DC1552
SMT
Right angle
6.5
11
5A/ 24V
N
OD1Φ: 5.5mm
2DC2262
DIP+SMT
Right angle
1.3
3
4A/ 20V
N
OD1Φ: 2.5mm
2DC1015
Wire Assembly
N/A
6
N/A
5A/ 20V
N/A
OD1Φ: 4.0mm
2DC3067
Wire Assembly
N/A
6.3
N/A
7A/ 20V
N/A
N/A
2DC3069
Wire Assembly
N/A
5.72
N/A
8A/ 20V
N/A
OD1Φ: 4.5mm
2DC3080
Wire Assembly
N/A
5.72
N/A
10A/ 20V
N/A
OD1Φ: 4.5mm
2DC3156
Wire Assembly
N/A
7.6
N/A
10A/ 20V
N/A
OD1Φ: 5.5mm
2DC-G233
Wire Assembly
N/A
10
N/A
10A/ 20V
N/A
OD1Φ: 5.5mm
2DC3213
Wire Assembly
N/A
6.6
N/A
20A/ 20V
N/A
OD1Φ: 5.5mm
