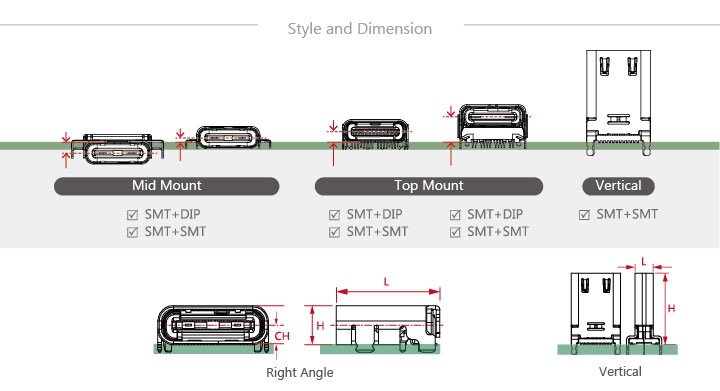

- Mounting Type: Top Mount(On Board) and Mid Mount
- PCB Connection Type: 2 row SMT(SMT+SMT), and Hybrid Type(SMT+DIP)
- Orientation: Right Angle, Vertical and Flag
江苏省苏州市吴中区胥口镇胥江工业园新峰路509号 (邮区:215164)

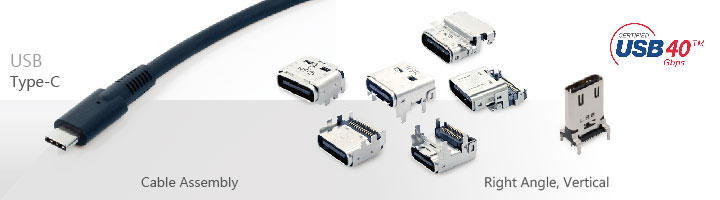

USB Type-C 連接器
具備高速資料傳輸、電力供應與正反可插設計，提供更便利的使用體驗。廣泛應用於消費性電子、行動裝置、工業設備及智慧應用產品。
Product Overview
产品简介
正反可插設計
高速多功能傳輸
高可靠小型化設計
产品介绍
规格表
相关应用
产品介绍
规格表
相关应用
Product Description
产品介绍
Specifications
规格表
产品筛选
99+
汇出筛选结果
关键字搜寻
筛选条件
Right angle
Vertical
-1.55
-1.4
0.58
0.88
1.32
1.57
1.58
1.82
3.4
1.56
1.57
2.16
2.71
3.14
3.15
3.41
3.5
5.18
12
Dual SMT
SMT
16
24
TBT4
TBT5
USB2.0
确认搜寻
No Matching Results
筛选无结果
目前无符合条件的产品，请调整或重新设定筛选条件。
左右拖拉查看
产品图片
产品名称
型式说明
Mount Orientation
Center Height
PCB to Top Height
Solder type
Terminal Q'ty
Speed
其他功能
2UB3C39
Mid mount
Right angle
-1.55
1.56
Dual SMT
24
TBT5
2UB3C43
Top mount
Right angle
1.82
3.5
Dual SMT
24
TBT5
2UB3C08
Top mount
Right angle
1.57
3.14
Dual SMT
24
TBT5
2UB3C70
Mid mount
Right angle
0.58
2.16
SMT
16
USB2.0
2UB1804
Top mount
Right angle
3.4
5.18
Dual SMT
24
TBT5
2UB1771
Mid mount
Right angle
0.88
2.71
Dual SMT
24
TBT5
2UB1772
Mid mount
Right angle
1.32
3.15
Dual SMT
24
TBT4
2UB1793
Top mount
Right angle
1.58
3.41
Dual SMT
24
TBT5
2UB3C40
Mid mount
Right angle
-1.4
1.57
Dual SMT
24
TBT5
2UB1752
Top mount
Vertical
-
12
Dual SMT
24
TBT5
加入咨询表单
