提供可攜式與穿戴式裝置應用之小型化、高可靠連接器，支援電力、訊號與數據穩定傳輸，滿足輕量化與高效能整合需求。
Application Description
应用介绍
可攜式與穿戴式裝置應用連接器廣泛應用於智慧手錶、健康監測裝置、運動穿戴設備及行動式電子產品之間的電力與訊號傳輸。由於產品體積小、使用頻繁且需長時間貼身或戶外使用，連接器需具備小型化、高精密、高可靠及良好耐用性，以確保穩定運作與長期使用壽命。同時亦需滿足低功耗與高效能傳輸需求，支援感測數據、充電與通訊功能整合。部分應用環境還需具備防水、防汗及抗震動設計，以適應運動與日常生活場景。產品適用於智慧穿戴設備、健康醫療監測、行動裝置及個人電子產品，滿足現代可攜式應用對輕量化與高可靠連接的需求。
Related Products
相关产品

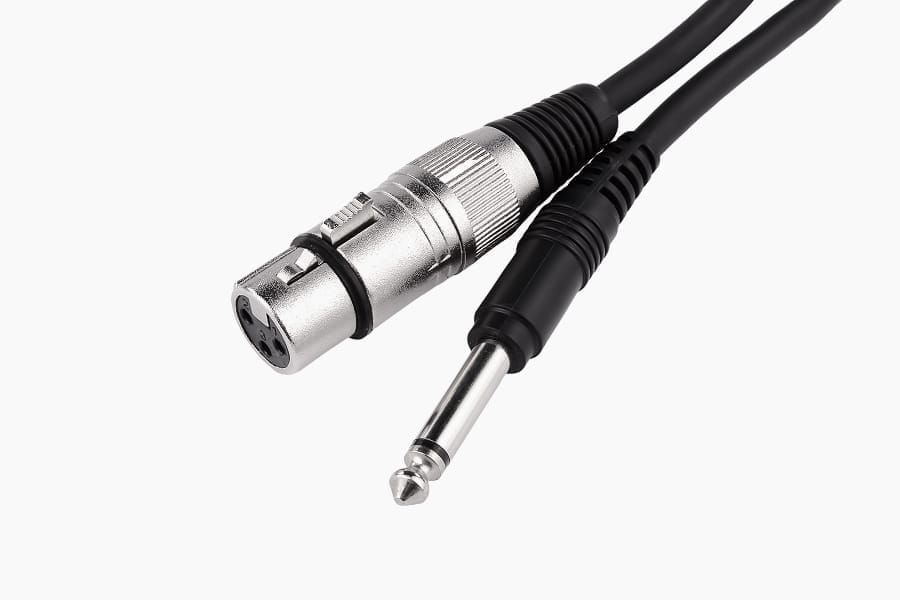

主要用於音訊訊號的傳輸，可提供穩定且清晰的聲音連接效果。廣泛應用於耳機、音響設備、消費性電子及通訊裝置。

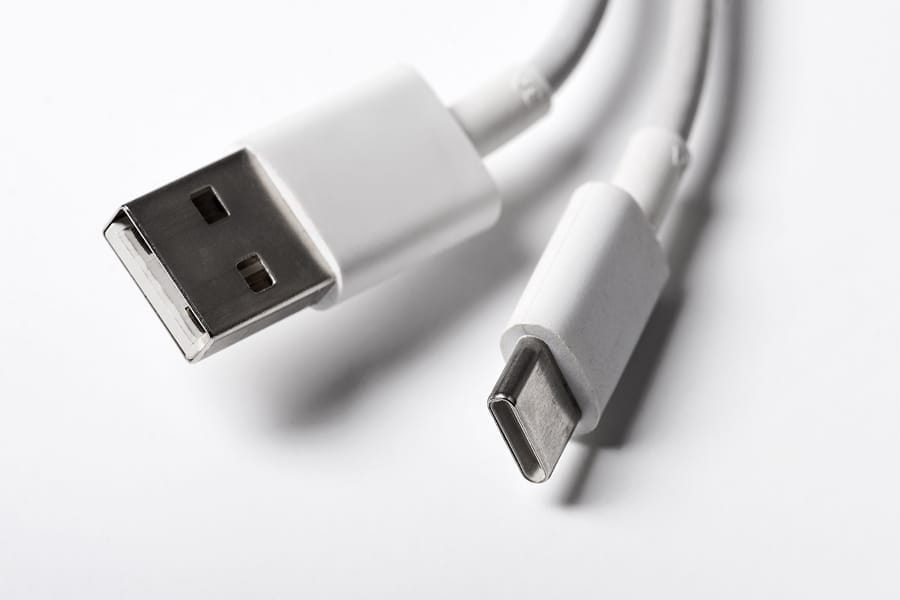

具備高速資料傳輸、電力供應與正反可插設計，提供更便利的使用體驗。廣泛應用於消費性電子、行動裝置、工業設備及智慧應用產品。
提供穩定的資料傳輸與電力供應，滿足不同速度與裝置需求。廣泛應用於電腦周邊、消費性電子、工業設備及各類傳輸裝置。
Related Applications
探索更多应用
提供完整产品型录及技术资料下载，涵盖规格、性能与应用范畴，方便工程师及采购快速取得所需资讯并支援专业决策。
