提供船舶電子與 NMEA2000 系統應用之防水連接器，具備高可靠傳輸與耐候性能，適用於導航、通訊及海事設備整合需求。
Application Description
应用介绍

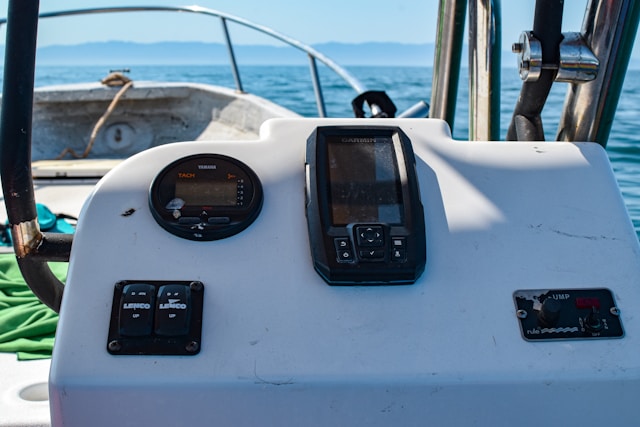

船舶電子應用連接器廣泛應用於船舶導航、通訊、監控及海事電子設備之間的電力與訊號傳輸。由於海上環境長期暴露於潮濕、高鹽分、震動及戶外氣候條件，因此連接器需具備優異的防水、防塵、耐腐蝕與耐候性能，以確保設備運作穩定可靠。此類連接器常應用於 GPS 導航系統、魚探機、雷達、NMEA2000 通訊系統、船用照明及動力控制設備，可有效提升系統整合效率與訊號傳輸穩定性。透過高可靠度的防水結構設計與穩固鎖固機構，不僅能降低維護成本，也能滿足船舶設備於嚴苛海事環境中的長期使用需求，適用於遊艇、漁船、商用船舶及各類海洋電子設備應用。
Related Products
相关产品
符合海事通訊標準，具備優異防水、防鹽霧與抗干擾性能，可確保船舶系統穩定數據傳輸。廣泛應用於船舶導航、監控系統、海事電子設備及工業級水上應用。
Related Applications
探索更多应用
提供完整产品型录及技术资料下载，涵盖规格、性能与应用范畴，方便工程师及采购快速取得所需资讯并支援专业决策。
