提供網通設備應用之高可靠、高速傳輸連接器，支援乙太網路與通訊系統穩定連接，滿足資料中心與工業網路高效運作需求。
Application Description
应用介绍

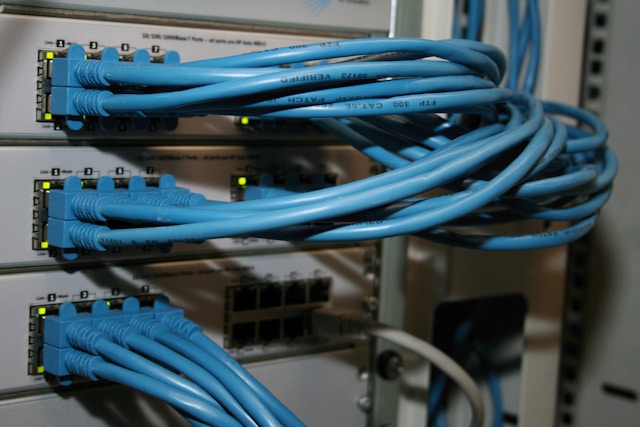

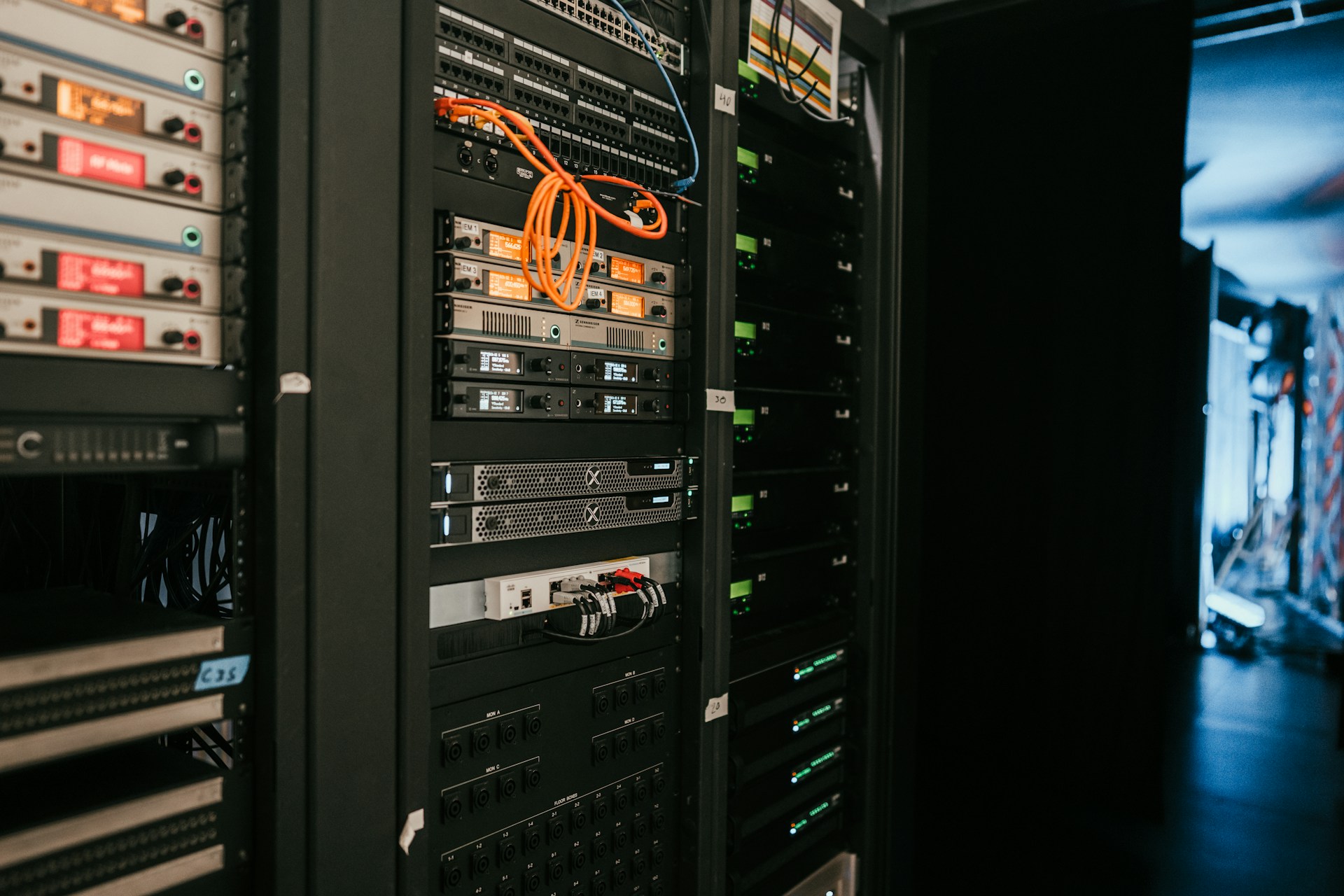

網通設備系統應用連接器廣泛應用於交換器、路由器、基地台、工業網路設備及資料傳輸系統之間的電力與高速數據連接。面對現代網路通訊對高速傳輸、穩定性及低延遲的要求，連接器需具備優異的訊號完整性、防干擾能力及高可靠性，以確保資料傳輸穩定不中斷。部分戶外或工業環境應用更需具備防水、防塵與耐候設計，以應對嚴苛使用條件。產品可支援乙太網路及各類通訊協議應用，並採用高密度設計與穩固結構，有效提升系統整合效率與維護便利性。適用於企業網路、智慧工廠、資料中心及通訊基礎建設等應用，滿足現代網路設備對高速與穩定連接的需求。
Related Products
相关产品

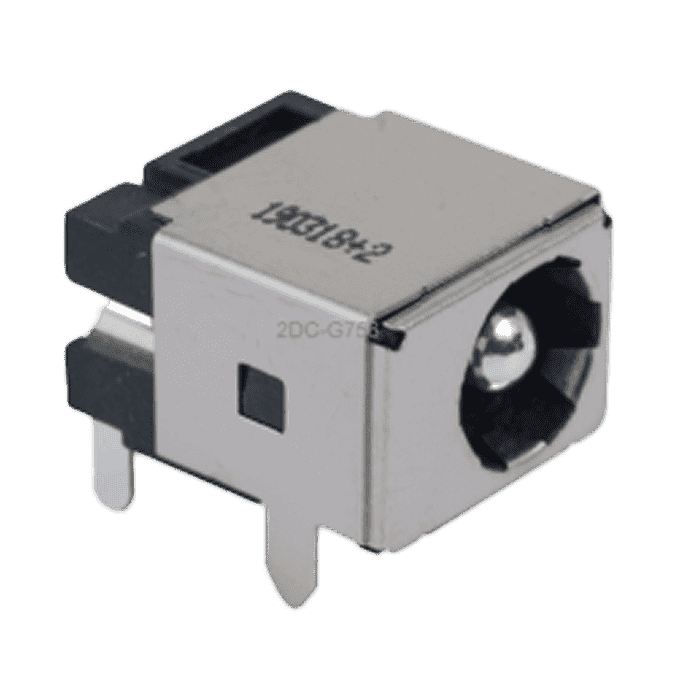

採用直插式設計，提供穩定的機械強度與電氣連接，適合電源供應器與各類電子設備應用。
提供穩定的資料傳輸與電力供應，滿足不同速度與裝置需求。廣泛應用於電腦周邊、消費性電子、工業設備及各類傳輸裝置。

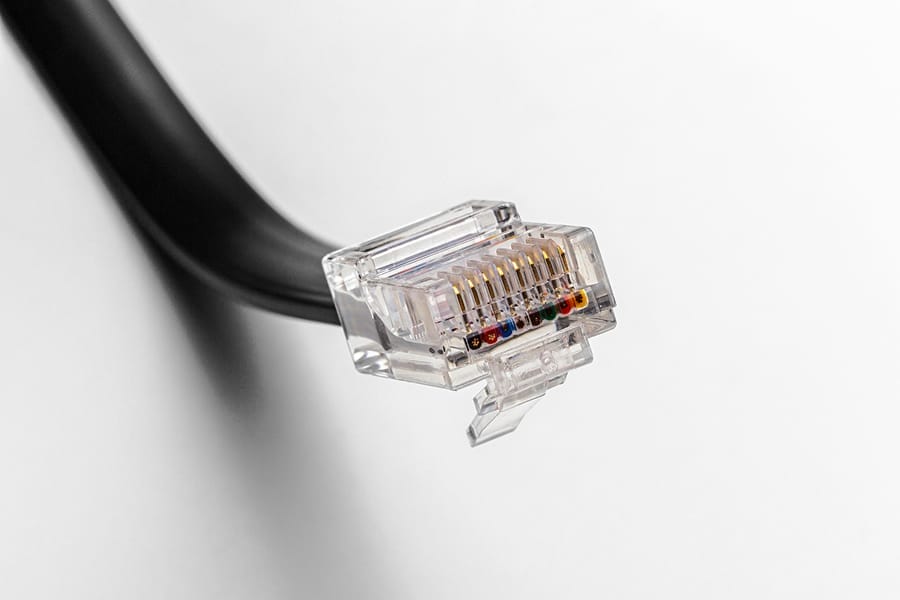

提供穩定的網路訊號傳輸與良好的抗干擾性能，提升通訊品質與系統穩定性。廣泛應用於網通設備、工業控制、伺服器及各類乙太網路應用。

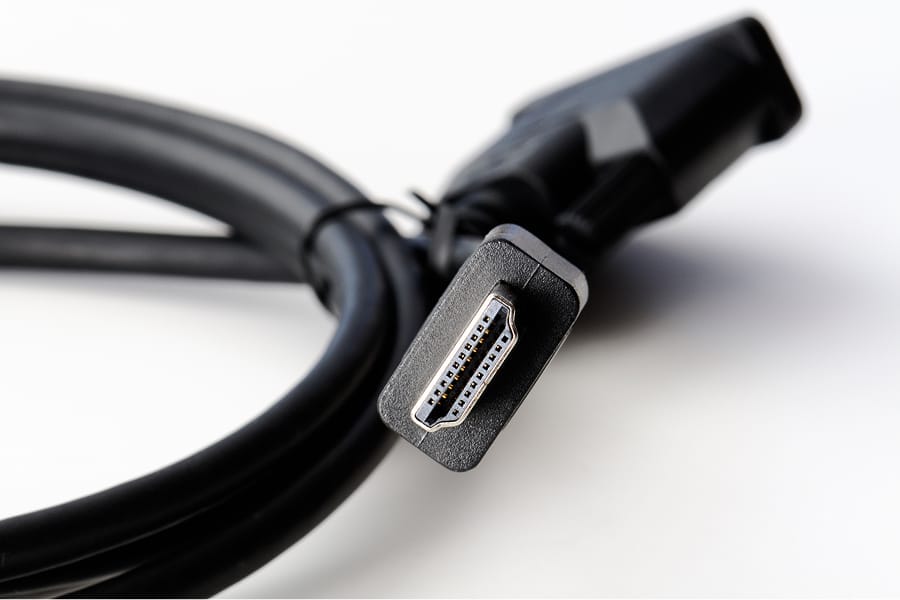

支援高畫質影音訊號的同步傳輸，提供穩定且清晰的視聽效果。廣泛應用於消費性電子、顯示設備、電腦周邊及多媒體系統。
Related Applications
探索更多应用
提供完整产品型录及技术资料下载，涵盖规格、性能与应用范畴，方便工程师及采购快速取得所需资讯并支援专业决策。
