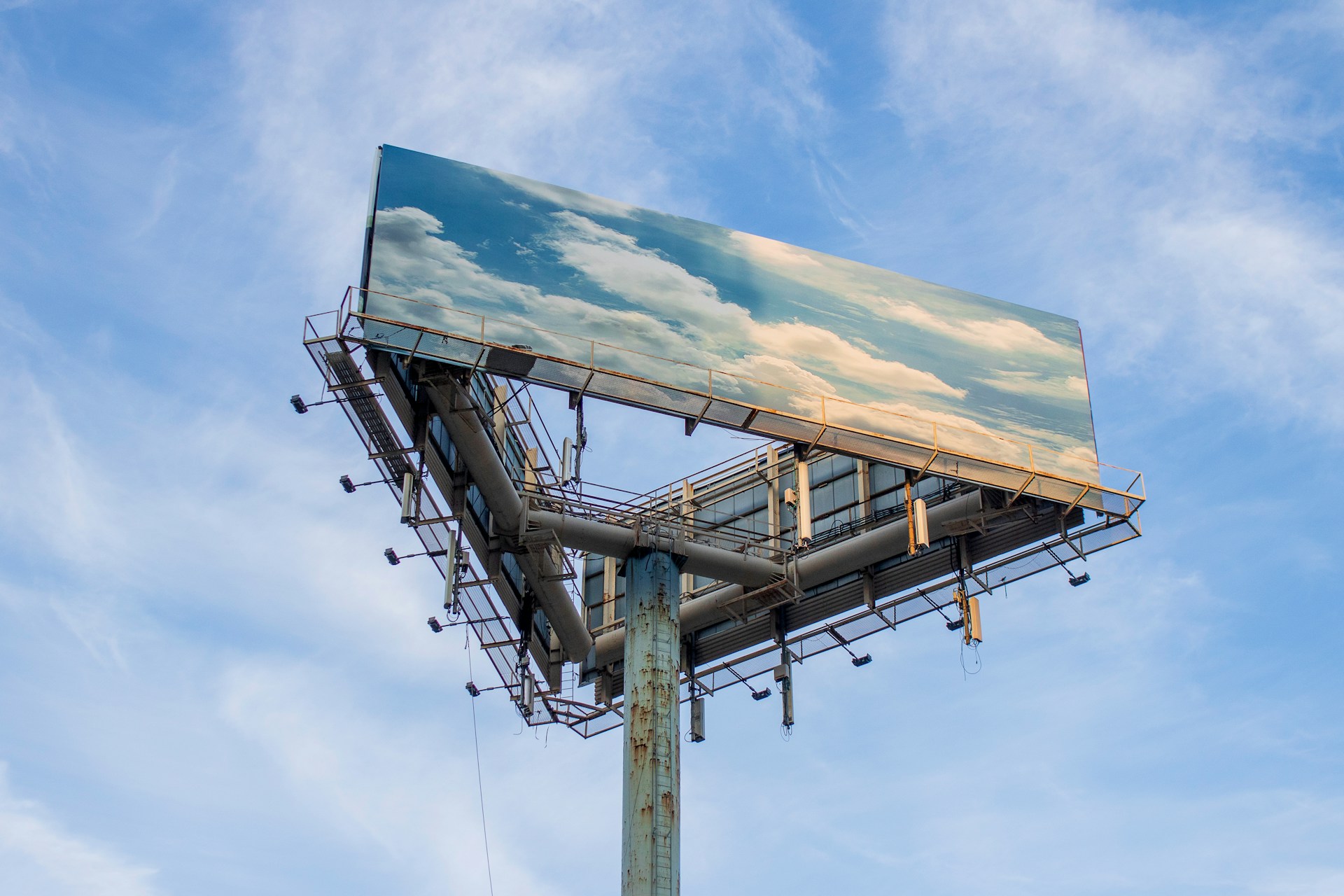

針對戶外看板與影音設備應用，提供高可靠、防水且耐候的連接器，滿足電力傳輸與影音訊號穩定連接需求，適用於高亮度顯示與戶外多媒體系統。
Application Description
应用介绍

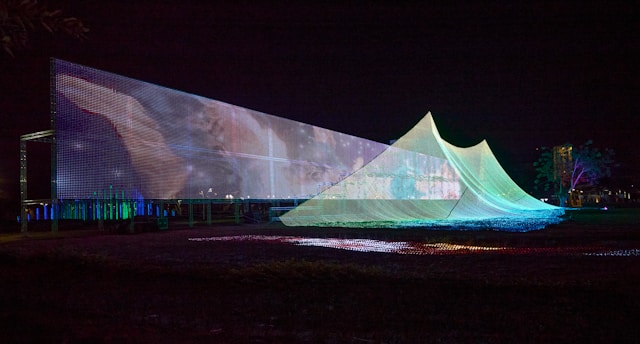

戶外看板與影音設備應用連接器廣泛應用於 LED 顯示屏、數位廣告看板、舞台影音系統及戶外多媒體設備之間的電力與訊號傳輸。由於設備多設置於戶外或半戶外環境，需長時間承受日曬、雨水、灰塵及溫差變化，因此連接器必須具備優異的防水、防塵、耐候及抗電磁干擾能力，以確保畫面顯示與影音訊號穩定傳輸。產品可支援高速影音資料與電力整合傳輸需求，並採用高可靠鎖固設計，有效降低訊號中斷風險與維護成本。適用於數位看板系統、戶外廣告媒體、活動舞台設備及智慧顯示應用，滿足現代戶外影音設備對高穩定性與高可靠連接的需求。
Related Products
相关产品

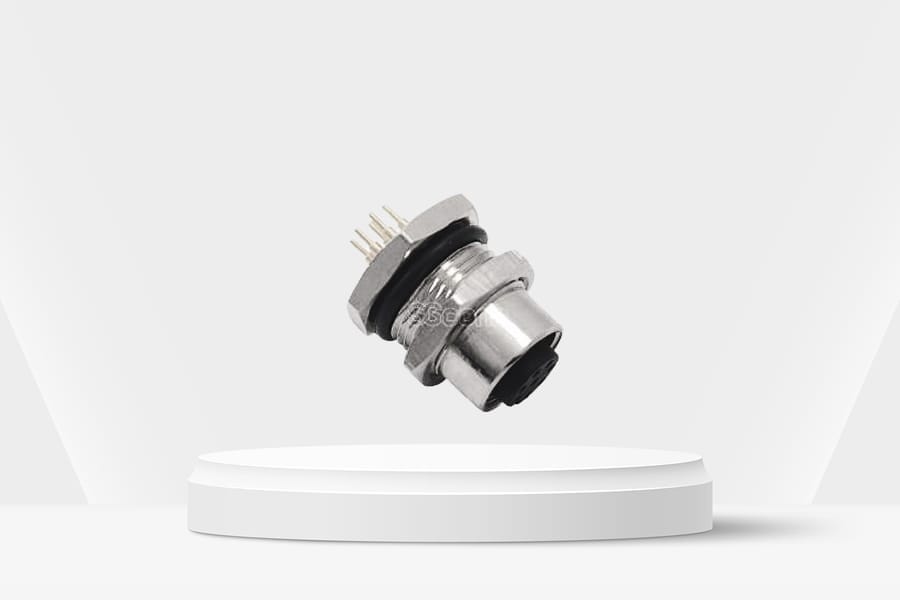

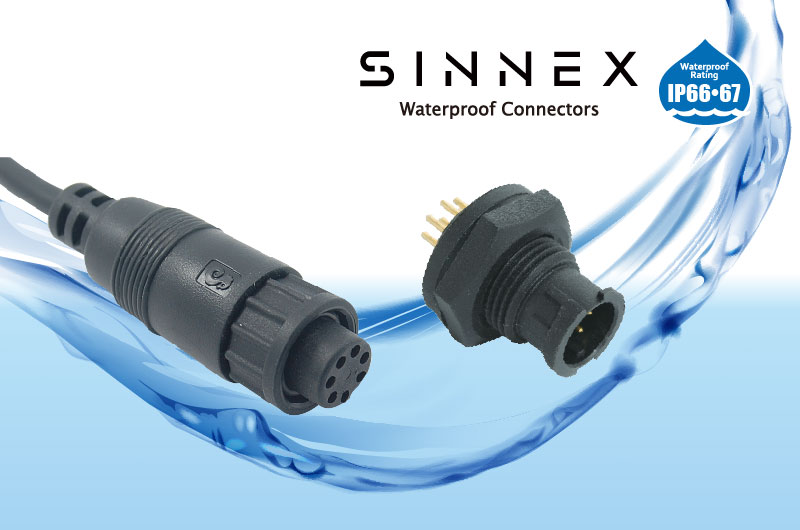

具備優異的防水與耐用特性，可提供穩定可靠的訊號與電力傳輸。廣泛應用於工業設備、自動化系統、戶外裝置及各類電子應用。
具備快速安裝與優異防水性能，可提升組裝效率與連接穩定性。廣泛應用於工業設備、自動化系統、戶外裝置及電子應用。
具備高可靠性與優異防水性能，可提供穩定的訊號與電力傳輸。廣泛應用於工業自動化、感測器、通訊設備及戶外設備。
具備穩定的資料傳輸能力與優異防水性能，可在嚴苛環境下維持可靠連接。廣泛應用於工業設備、戶外裝置、車載系統及消費性電子產品。
具備穩定的網路訊號傳輸與優異防水性能，可在嚴苛環境下維持可靠連接。廣泛應用於工業網通設備、戶外裝置、自動化系統及智慧應用產品。
具備優異的防水、防塵與線材固定性能，可有效保護線纜連接穩定性。廣泛應用於工業設備、控制箱、戶外裝置及電力系統。
Related Applications
探索更多应用
提供完整产品型录及技术资料下载，涵盖规格、性能与应用范畴，方便工程师及采购快速取得所需资讯并支援专业决策。
