具備快速安裝與優異防水性能，可提升組裝效率與連接穩定性。廣泛應用於工業設備、自動化系統、戶外裝置及電子應用。
Product Overview
产品简介
快速鎖固設計
高防水防塵性能
穩定可靠連接結構
产品介绍
规格表
相关应用
产品介绍
规格表
相关应用
Product Description
产品介绍
Quick-Lock 快鎖式可1秒安裝
連接器型式：Circular Standard Size, Circular Middle Size
組裝類型: Panel Mount, Molded with Cable, Field Installable
防水等級: IP67 Waterproof Connector
溫度範圍: [Conn. Body] -40°C~105°C
材質: [Conn. Body] Nylon+ GF, PBT; [Pin] Copper Alloy, Gold Plate

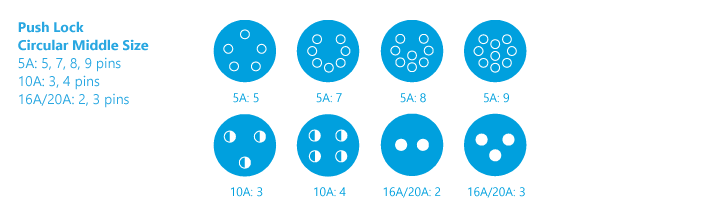

端子型式--（1）Push-Lock快鎖連接器
適用電流: 5A, 10A, 16A/20A
端子數: 2~5, 7~9 contacts
端子型式--（2）Hook-Lock快鎖連接器
適用電流: 5A, 10A
端子數: 2~4 contacts
Specifications
规格表
产品筛选
99+
汇出筛选结果
关键字搜寻
筛选条件
Accessory (Adaptor, Cap, Cover)
Assembly type
Panel Mount 180°PCB type
Panel Mount 180°solder type
Panel Mount solder Push Lock type
Plug-Molded With Cable Push Lock type
F Conn F Pin
F Conn M Pin
M Conn F Pin
M Conn M Pin
2
3
4
5
7
8
9
10A
15A
16/20A
5A
IP67
2CM3004/3032
2QM3000/2QM3002
2QM3002
2QM3002/3024/3033
2QM3004
2QM3004/3032
2QM3012
2QM3014
2QM3016
2QM3016/2QM3036
2QM3024
2QM3036
确认搜寻
No Matching Results
筛选无结果
目前无符合条件的产品，请调整或重新设定筛选条件。
左右拖拉查看
产品图片
产品名称
型式说明
Type-1
Type-2
PIN
Rating
Waterproof Rating
Matching
Accessories
其他功能
2QM3002-W02600H
Circular Quick Push Lock Middle Size
Panel Mount solder Push Lock type
-
M Conn M Pin
2
16/20A
IP67
2CM3004/3032
2QM3002-W03400H
Circular Quick Push Lock Middle Size
Panel Mount solder Push Lock type
-
M Conn M Pin
3
10A
IP67
2QM3004/3032
2QM3002-W03401H
Circular Quick Push Lock Middle Size
Panel Mount solder Push Lock type
-
M Conn M Pin
3
10A
IP67
2QM3004/3032
2QM3002-W07300H
Circular Quick Push Lock Middle Size
Panel Mount solder Push Lock type
-
M Conn M Pin
7
5A
IP67
2QM3004
2QM3002-W08300H
Circular Quick Push Lock Middle Size
Panel Mount solder Push Lock type
-
M Conn M Pin
8
5A
IP67
2QM3004
2QM3002-W09300H
Circular Quick Push Lock Middle Size
Panel Mount solder Push Lock type
-
M Conn M Pin
9
5A
IP67
2QM3004
2QM3012-W08300H
Circular Quick Push Lock Middle Size
Panel Mount 180°PCB type
-
M Conn F Pin
8
5A
IP67
2QM3016/2QM3036
2QM3004-W03401H
Circular Quick Push Lock Middle Size
Plug-Molded With Cable Push Lock type
-
F Conn F Pin
3
10A
IP67
2QM3002/3024/3033
2QM3004-W03600H
Circular Quick Push Lock Middle Size
Plug-Molded With Cable Push Lock type
-
F Conn F Pin
3
16/20A
IP67
2QM3002/3024/3033
2QM3004-W04400H
Circular Quick Push Lock Middle Size
Plug-Molded With Cable Push Lock type
-
F Conn F Pin
4
10A
IP67
2QM3002/3024/3033
2QM3004-W07300H
Circular Quick Push Lock Middle Size
Plug-Molded With Cable Push Lock type
-
F Conn F Pin
7
5A
IP67
2QM3002
2QM3004-W08300H
Circular Quick Push Lock Middle Size
Plug-Molded With Cable Push Lock type
-
F Conn F Pin
8
5A
IP67
2QM3002
2QM3004-W09300H
Circular Quick Push Lock Middle Size
Plug-Molded With Cable Push Lock type
-
F Conn F Pin
9
5A
IP67
2QM3002
2QM3014-W03600H
Circular Quick Push Lock Middle Size
Panel Mount solder Push Lock type
-
M Conn F Pin
3
16/20A
IP67
2QM3036
2QM3014-W09300H
Circular Quick Push Lock Middle Size
Panel Mount solder Push Lock type
-
M Conn F Pin
9
5A
IP67
2QM3016
2QM3016-W08300H
Circular Quick Push Lock Middle Size
Plug-Molded With Cable Push Lock type
-
F Conn M Pin
8
5A
IP67
2QM3012
2QM3016-W09300H
Circular Quick Push Lock Middle Size
Plug-Molded With Cable Push Lock type
-
F Conn M Pin
9
5A
IP67
2QM3014
2QM3024-W03600H
Circular Quick Push Lock Middle Size
Plug-Molded With Cable Push Lock type
-
M Conn M Pin
3
16/20A
IP67
2QM3004/3032
2QM3024-W04400H
Circular Quick Push Lock Middle Size
Plug-Molded With Cable Push Lock type
-
M Conn M Pin
4
10A
IP67
2QM3004/3032
2QM3032-W02600H
Circular Quick Push Lock Middle Size
Assembly type
-
F Conn F Pin
2
16/20A
IP67
2QM3002/3024/3033
2QM3032-W03400H
Circular Quick Push Lock Middle Size
Assembly type
-
F Conn F Pin
3
10A
IP67
2QM3002/3024/3033
2QM3032-W03401H
Circular Quick Push Lock Middle Size
Assembly type
-
F Conn F Pin
3
10A
IP67
2QM3002/3024/3033
2QM3032-W03600H
Circular Quick Push Lock Middle Size
Assembly type
-
F Conn F Pin
3
16/20A
IP67
2QM3002/3024/3033
2QM3032-W04400H
Circular Quick Push Lock Middle Size
Assembly type
-
F Conn F Pin
4
10A
IP67
2QM3002/3024/3033
2QM3033-W02600H
Circular Quick Push Lock Middle Size
Assembly type
-
M Conn M Pin
2
16/20A
IP67
2CM3004/3032
2QM3033-W03400H
Circular Quick Push Lock Middle Size
Assembly type
-
M Conn M Pin
3
10A
IP67
2QM3004/3032
2QM3033-W03401H
Circular Quick Push Lock Middle Size
Assembly type
-
M Conn M Pin
3
10A
IP67
2QM3004/3032
2QM3024-W03401H
Circular Quick Push Lock Middle Size
Plug-Molded With Cable Push Lock type
-
M Conn M Pin
3
10A
IP67
2QM3004/3032
2QM3002-W04400H
Circular Quick Push Lock Middle Size
Panel Mount 180°solder type
-
M Conn M Pin
4
10A
IP67
2QM3004/3032
2QM3033-W04400H
Circular Quick Push Lock Middle Size
Assembly type
-
M Conn M Pin
4
10A
IP67
2QM3004/3032
2QM3036-W03600H
Circular Quick Push Lock Middle Size
Assembly type
-
F Conn M Pin
3
16/20A
IP67
2QM3014
2QM3036-W08300H
Circular Quick Push Lock Middle Size
Assembly type
-
F Conn M Pin
8
5A
IP67
2QM3012
2QM3000-W0000WH
Circular Quick Push Lock Middle Size
Accessory (Adaptor, Cap, Cover)
-
-
-
-
IP67
2QM3000/2QM3002
2QM3024-W0000WH
Circular Quick Push Lock Middle Size
Accessory (Adaptor, Cap, Cover)
-
-
-
-
IP67
2CM3004/3032
2QM3024-W02600H
Circular Quick Push Lock Standard Size
Plug-Molded With Cable Push Lock type
-
M Conn M Pin
2
16/20A
IP67
2CM3004/3032
2QM3004-W05300H
Circular Quick Push Lock Standard Size
Plug-Molded With Cable Push Lock type
-
F Conn F Pin
5
5A
IP67
2QM3024
2QM3024-W05300H
Circular Quick Push Lock Standard Size
Plug-Molded With Cable Push Lock type
-
M Conn M Pin
5
5A
IP67
2QM3004
2QM3002-W03600H
Circular Quick Push Lock Standard Size
Panel Mount solder Push Lock type
-
M Conn M Pin
3
15A
IP67
2QM3004/3032
2QM3004-W02600H
Circular Quick Push Lock Standard Size
Plug-Molded With Cable Push Lock type
-
F Conn F Pin
2
16/20A
IP67
2QM3002/3024/3033
2QM3033-W03600H
Circular Quick Push Lock Standard Size
Assembly type
-
M Conn M Pin
3
16/20A
IP67
2QM3004/3032
