針對戶外通訊與網路設備應用，提供高可靠、防水且耐候的連接器，滿足訊號傳輸、資料通訊及嚴苛戶外環境使用需求。
Application Description
应用介绍

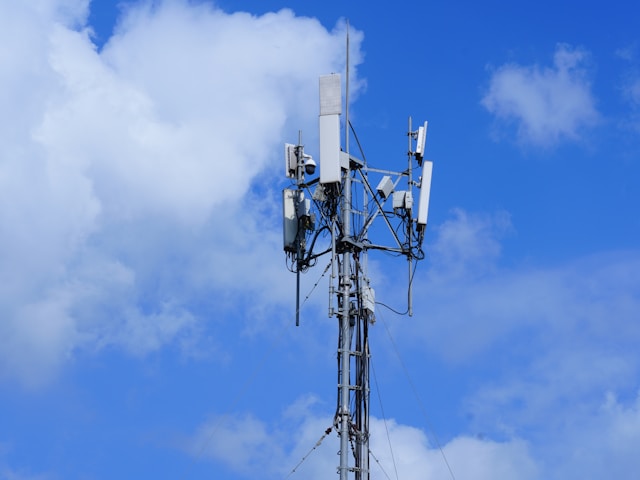

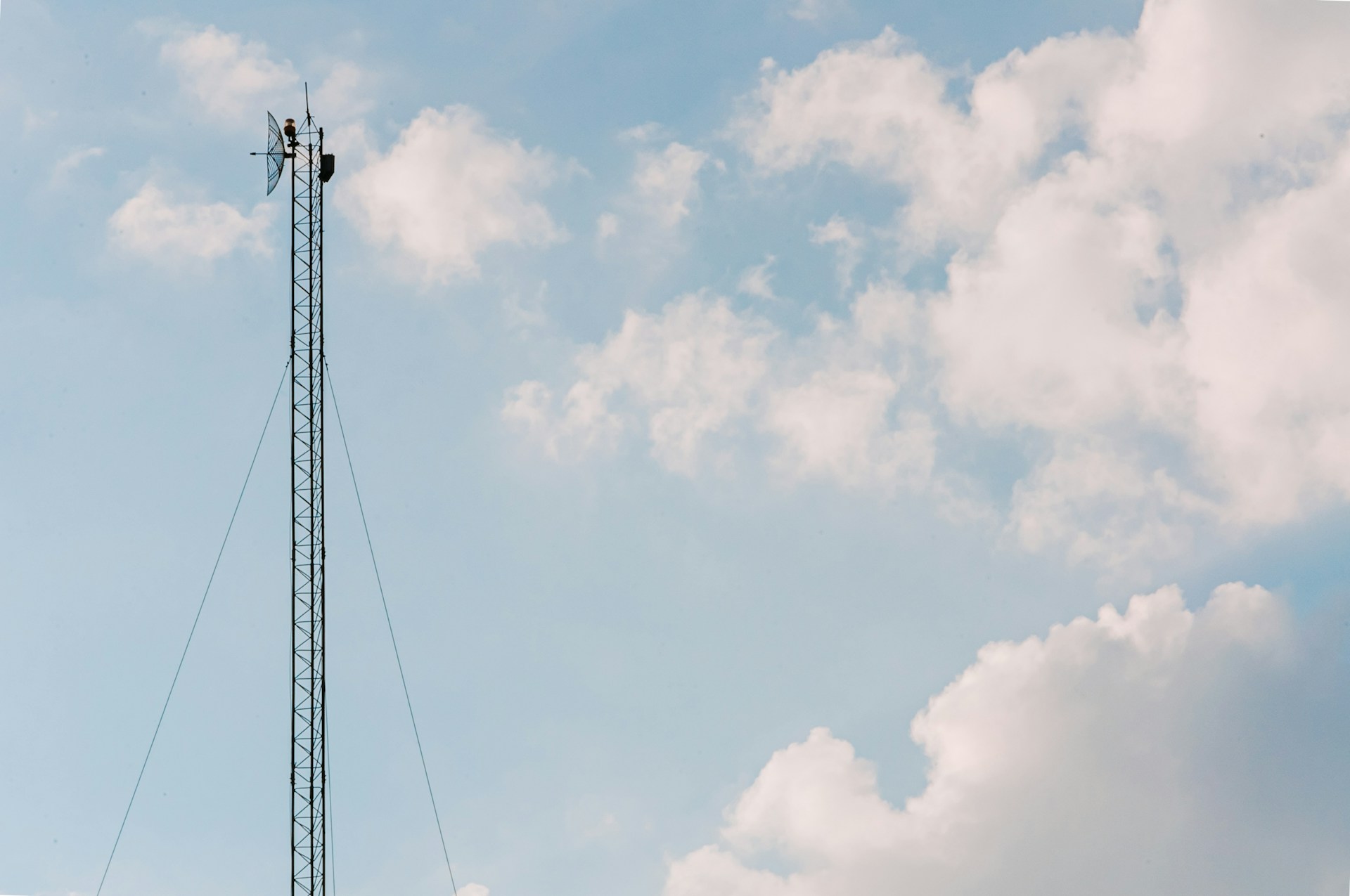

戶外通訊設備連接器廣泛應用於基地台、無線通訊設備、網路傳輸系統、戶外監控及工業通訊裝置之間的電力與訊號連接。由於設備長期暴露於日曬、雨水、灰塵及溫差變化等嚴苛環境中，因此連接器需具備優異的防水、防塵、耐候及抗干擾性能，以確保穩定且高效的資料傳輸。產品可支援高速訊號與電力整合傳輸需求，並具備穩固鎖固結構與高可靠度設計，有效降低訊號中斷與維護成本。適用於戶外網路設備、通訊天線、智慧城市系統及各類工業通訊應用，滿足現代戶外通訊設備對穩定性與耐用性的需求。
Related Products
相关产品
兼具適中的尺寸與優異防水性能，可提供穩定可靠的連接表現。廣泛應用於工業設備、自動化系統、戶外裝置及電子產品。
具備高耐用性與優異防水性能，可滿足大電流與嚴苛環境下的穩定連接需求。廣泛應用於工業設備、自動化系統、戶外設備及重工業應用。
具備穩定的網路訊號傳輸與優異防水性能，可在嚴苛環境下維持可靠連接。廣泛應用於工業網通設備、戶外裝置、自動化系統及智慧應用產品。
具備優異的防水、防塵與線材固定性能，可有效保護線纜連接穩定性。廣泛應用於工業設備、控制箱、戶外裝置及電力系統。
Related Applications
探索更多应用
提供完整产品型录及技术资料下载，涵盖规格、性能与应用范畴，方便工程师及采购快速取得所需资讯并支援专业决策。
