兼具適中的尺寸與優異防水性能，可提供穩定可靠的連接表現。廣泛應用於工業設備、自動化系統、戶外裝置及電子產品。
Product Overview
产品简介
中型圓形結構設計
高防水防塵等級
穩固耐用鎖固機構
产品介绍
规格表
相关应用
产品介绍
规格表
相关应用
Product Description
产品介绍
連接器型式: Circular Middle Size
組裝類型: Panel Mount, Molded with Cable, Field Installable
防水等級: IP67 Waterproof Connectors
溫度範圍: [Conn. Body] -40°C~100°C
材質: [Connector Body] Nylon+ GF, PBT, UL Recognized; [Pin] Copper Alloy, Gold Plated

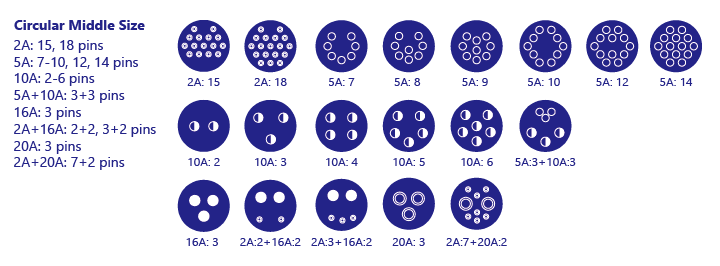

端子型式
適用電流: 2A, 5A, 10A, 16A, 20A, 5A+10A, 2A+16A, 2A+20A
端子數: 2~10, 12, 14,15, 18, 7+2 contacts
Specifications
规格表
产品筛选
99+
汇出筛选结果
关键字搜寻
筛选条件
Accessory (Adaptor, Cap, Cover)
Assembly type
Panel solder Rear Mount
Panel solder Rear Mount Solder Type
Panel Mount 180°PCB type
Panel Mount 180°solder type
Plug-Molded With Cable
F Conn F Pin
F Conn M Pin
M Conn F Pin
M Conn M Pin
2
3
4
5
6
7
8
9
10
12
14
18
2+2
2+3
2+4
2+7
10A
16/20A
16/21A
16A+2A
20A+2A
20A+5A+2A
2A
5A
N/A
IP67
N/A
2CG3004/3032
2CM3000/3002
2CM3000/3002/3012/3014/3133
2CM3000/3002/3012/3014/3133/3033
2CM3000/3002/3024/3033
2CM3000/3002/3033
2CM3002
2CM3002/3024
2CM3002/3024/3033
2CM3002/3033
2CM3004
2CM3004/3010
2CM3004/3010/3032
2CM3004/3032
2CM3010-W03601H
2CM3012/3014
2CM3012/3014/3037
2CM3014
2CM3016
2CM3016/3036
2CM3020
2CM3032
2CM3036
2CM3036-W03602H
2CM3133
2CM3137
2CM3000-W0000W 2CM3000-W0000D
Cap included
确认搜寻
No Matching Results
筛选无结果
目前无符合条件的产品，请调整或重新设定筛选条件。
左右拖拉查看
产品图片
产品名称
型式说明
Type-1
Type-2
PIN
Rating
Waterproof Rating
Matching
Accessories
其他功能
2CM3002-W14300H
Middle Size
Panel Mount 180°solder type
M Conn M Pin
14
5A
IP67
2CM3004/3010
2CM3000-W0000W 2CM3000-W0000D
2CM3010-W14300H
Middle Size
Plug-Molded With Cable
F Conn F Pin
14
5A
IP67
2CM3002/3024
-
2CM3024-W14300H
Middle Size
Plug-Molded With Cable
F Conn F Pin
14
5A
IP67
2CM3004/3010
-
2CM3000-W0000D
Middle Size
Accessory (Adaptor, Cap, Cover)
-
-
N/A
N/A
2CM3000/3002/3012/3014/3133
-
2CM3000-W0000W
Middle Size
Accessory (Adaptor, Cap, Cover)
-
-
N/A
IP67
2CM3000/3002/3012/3014/3133
-
2CM3000-W03600
Middle Size
Panel Mount 180°PCB type
M Conn M Pin
3
16/20A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3000-W04400
Middle Size
Panel Mount 180°PCB type
M Conn M Pin
4
10A
IP67
2CM3004/3010/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3000-W05400
Middle Size
Panel Mount 180°PCB type
M Conn M Pin
5
10A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3000-W06400
Middle Size
Panel Mount 180°PCB type
M Conn M Pin
6
10A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3000-W07300
Middle Size
Panel Mount 180°PCB type
M Conn M Pin
7
5A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3000-W08300
Middle Size
Panel Mount 180°PCB type
M Conn M Pin
8
5A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3000-W09300
Middle Size
Panel Mount 180°PCB type
M Conn M Pin
9
5A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3000-W14300H
Middle Size
Panel Mount 180°PCB type
M Conn M Pin
14
5A
IP67
2CM3004/3010
2CM3000-W0000W 2CM3000-W0000D
2CM3000-W18200H
Middle Size
Panel Mount 180°PCB type
M Conn M Pin
18
2A
IP67
2CM3004/3010
2CM3000-W0000W 2CM3000-W0000D
2CM3002-W03600
Middle Size
Panel Mount 180°solder type
M Conn M Pin
3
16/20A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3002-W04400
Middle Size
Panel Mount 180°solder type
M Conn M Pin
4
10A
IP67
2CM3004/3010/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3002-W05400
Middle Size
Panel Mount 180°solder type
M Conn M Pin
5
10A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3002-W06400
Middle Size
Panel Mount 180°solder type
M Conn M Pin
6
10A
IP67
2CG3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3002-W07300
Middle Size
Panel Mount 180°solder type
M Conn M Pin
7
5A
IP67
2CG3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3002-W08300
Middle Size
Panel Mount 180°solder type
M Conn M Pin
8
5A
IP67
2CG3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3002-W09300
Middle Size
Panel Mount 180°solder type
M Conn M Pin
9
5A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3002-W10300
Middle Size
Panel Mount 180°solder type
M Conn M Pin
10
5A
IP67
2CM3004
2CM3000-W0000W 2CM3000-W0000D
2CM3002-W12300
Middle Size
Panel Mount 180°solder type
M Conn M Pin
12
5A
IP67
2CM3004
2CM3000-W0000W 2CM3000-W0000D
2CM3002-W18200H
Middle Size
Panel Mount 180°solder type
M Conn M Pin
18
2A
IP67
2CM3004/3010
2CM3000-W0000W 2CM3000-W0000D
2CM3004-W0000C
Middle Size
Accessory (Adaptor, Cap, Cover)
-
-
N/A
IP67
2CM3000/3002/3012/3014/3133/3033
2CM3000-W0000W 2CM3000-W0000D
2CM3004-W03600
Middle Size
Plug-Molded With Cable
F Conn F Pin
3
16/20A
IP67
2CM3000/3002/3024/3033
2CM3000-W0000W 2CM3000-W0000D
2CM3004-W04400H
Middle Size
Plug-Molded With Cable
F Conn F Pin
4
10A
IP67
2CM3000/3002/3033
2CM3000-W0000W 2CM3000-W0000D
2CM3004-W05400H
Middle Size
Plug-Molded With Cable
F Conn F Pin
5
10A
IP67
2CM3000/3002/3033
2CM3000-W0000W 2CM3000-W0000D
2CM3004-W06400H
Middle Size
Plug-Molded With Cable
F Conn F Pin
6
10A
IP67
2CM3000/3002/3033
2CM3000-W0000W 2CM3000-W0000D
2CM3004-W07300
Middle Size
Plug-Molded With Cable
F Conn F Pin
7
5A
IP67
2CM3000/3002/3024/3033
2CM3000-W0000W 2CM3000-W0000D
2CM3004-W08300
Middle Size
Plug-Molded With Cable
F Conn F Pin
8
5A
IP67
2CM3000/3002/3024/3033
2CM3000-W0000W 2CM3000-W0000D
2CM3004-W09300
Middle Size
Plug-Molded With Cable
F Conn F Pin
9
5A
IP67
2CM3000/3002/3024/3033
2CM3000-W0000W 2CM3000-W0000D
2CM3004-W10300
Middle Size
Plug-Molded With Cable
F Conn F Pin
10
5A
IP67
2CM3002
2CM3000-W0000W 2CM3000-W0000D
2CM3004-W12300
Middle Size
Plug-Molded With Cable
F Conn F Pin
12
5A
IP67
2CM3002
2CM3000-W0000W 2CM3000-W0000D
2CM3004-W14300H
Middle Size
Plug-Molded With Cable
F Conn F Pin
14
5A
IP67
2CM3002/3024
2CM3000-W0000W 2CM3000-W0000D
2CM3010-W03601H
Middle Size
Plug-Molded With Cable
F Conn F Pin
3
16/20A
IP67
2CM3133
2CM3000-W0000W 2CM3000-W0000D
2CM3010-W04400H
Middle Size
Plug-Molded With Cable
F Conn F Pin
4
10A
IP67
2CM3000/3002/3033
2CM3000-W0000W 2CM3000-W0000D
2CM3010-W18200H
Middle Size
Plug-Molded With Cable
F Conn F Pin
18
2A
IP67
2CM3000/3002
2CM3000-W0000W 2CM3000-W0000D
2CM3012-W07300H
Middle Size
Panel Mount 180°PCB type
M Conn F Pin
7
5A
IP67
2CM3016
2CM3000-W0000W 2CM3000-W0000D
2CM3012-W08300H
Middle Size
Panel Mount 180°PCB type
M Conn F Pin
8
5A
IP67
2CM3016
2CM3000-W0000W 2CM3000-W0000D
2CM3012-W09300
Middle Size
Panel Mount 180°PCB type
M Conn F Pin
9
5A
IP67
2CM3016
2CM3000-W0000W 2CM3000-W0000D
2CM3012-W09E00
Middle Size
Panel Mount 180°PCB type
M Conn F Pin
2+7
20A+2A
IP67
2CM3016
2CM3000-W0000W 2CM3000-W0000D
2CM3014-W03600
Middle Size
Panel Mount 180°solder type
M Conn F Pin
3
16/20A
IP67
2CM3036
2CM3000-W0000W 2CM3000-W0000D
2CM3014-W04400H
Middle Size
Panel Mount 180°solder type
M Conn F Pin
4
10A
IP67
2CM3016/3036
2CM3000-W0000W 2CM3000-W0000D
2CM3014-W04B00
Middle Size
Panel Mount 180°solder type
M Conn F Pin
2+2
16A+2A
IP67
2CM3016
2CM3000-W0000W 2CM3000-W0000D
2CM3014-W05B00
Middle Size
Panel Mount 180°solder type
M Conn F Pin
2+3
16A+2A
IP67
2CM3016
2CM3000-W0000W 2CM3000-W0000D
2CM3014-W07300
Middle Size
Panel Mount 180°solder type
M Conn F Pin
7
5A
IP67
2CM3016
2CM3000-W0000W 2CM3000-W0000D
2CM3014-W08300
Middle Size
Panel Mount 180°solder type
M Conn F Pin
8
5A
IP67
2CM3016
2CM3000-W0000W 2CM3000-W0000D
2CM3014-W09300
Middle Size
Panel Mount 180°solder type
M Conn F Pin
9
5A
IP67
2CM3016
2CM3000-W0000W 2CM3000-W0000D
2CM3014-W09E00H
Middle Size
Panel Mount 180°solder type
M Conn F Pin
2+7
20A+2A
IP67
2CM3016/3036
2CM3000-W0000W 2CM3000-W0000D
2CM3016-W04B01
Middle Size
Plug-Molded With Cable
F Conn M Pin
2+2
16A+2A
IP67
2CM3014
2CM3000-W0000W 2CM3000-W0000D
2CM3016-W05B03
Middle Size
Plug-Molded With Cable
F Conn M Pin
2+3
16A+2A
IP67
2CM3014
2CM3000-W0000W 2CM3000-W0000D
2CM3016-W07300H
Middle Size
Plug-Molded With Cable
F Conn M Pin
7
5A
IP67
2CM3012/3014
2CM3000-W0000W 2CM3000-W0000D
2CM3016-W08300H
Middle Size
Plug-Molded With Cable
F Conn M Pin
8
5A
IP67
2CM3012/3014
2CM3000-W0000W 2CM3000-W0000D
2CM3016-W09300H
Middle Size
Plug-Molded With Cable
F Conn M Pin
9
5A
IP67
2CM3012/3014
2CM3000-W0000W 2CM3000-W0000D
2CM3016-W09E07H
Middle Size
Plug-Molded With Cable
F Conn M Pin
2+7
20A+2A
IP67
2CM3012/3014/3037
2CM3000-W0000W 2CM3000-W0000D
2CM3024-W0000C
Middle Size
Accessory (Adaptor, Cap, Cover)
-
-
N/A
N/A
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3024-W03600
Middle Size
Plug-Molded With Cable
M Conn M Pin
3
16/20A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3004-W03681H
Middle Size
Plug-Molded With Cable
M Conn M Pin
3
16/20A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3024-W07300
Middle Size
Plug-Molded With Cable
M Conn M Pin
7
5A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3024-W08300
Middle Size
Plug-Molded With Cable
M Conn M Pin
8
5A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3024-W09300
Middle Size
Plug-Molded With Cable
M Conn M Pin
9
5A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3032-W02408H
Middle Size
Assembly type
F Conn F Pin
2
10A
IP67
2CM3002/3024/3033
2CM3000-W0000W 2CM3000-W0000D
2CM3032-W03600
Middle Size
Assembly type
F Conn F Pin
3
16/20A
IP67
2CM3002/3033
2CM3000-W0000W 2CM3000-W0000D
2CM3032-W04400
Middle Size
Assembly type
F Conn F Pin
4
10A
IP67
2CM3000/3002/3033
2CM3000-W0000W 2CM3000-W0000D
2CM3032-W05400
Middle Size
Assembly type
F Conn F Pin
5
10A
IP67
2CM3000/3002/3033
2CM3000-W0000W 2CM3000-W0000D
2CM3032-W06400
Middle Size
Assembly type
F Conn F Pin
6
10A
IP67
2CM3000/3002/3033
2CM3000-W0000W 2CM3000-W0000D
2CM3032-W07300
Middle Size
Assembly type
F Conn F Pin
7
5A
IP67
2CM3000/3002/3024/3033
2CM3000-W0000W 2CM3000-W0000D
2CM3032-W08300
Middle Size
Assembly type
F Conn F Pin
8
5A
IP67
2CM3000/3002/3024/3033
2CM3000-W0000W 2CM3000-W0000D
2CM3032-W09300
Middle Size
Assembly type
F Conn F Pin
9
5A
IP67
2CM3000/3002/3024/3033
2CM3000-W0000W 2CM3000-W0000D
2CM3033-W02400H
Middle Size
Assembly type
M Conn M Pin
2
10A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3033-W02405H
Middle Size
Assembly type
M Conn M Pin
2
10A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3033-W03600
Middle Size
Assembly type
M Conn M Pin
3
16/20A
IP67
2CM3032
2CM3000-W0000W 2CM3000-W0000D
2CM3033-W04400
Middle Size
Assembly type
M Conn M Pin
4
10A
IP67
2CM3004/3010/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3033-W05400
Middle Size
Assembly type
M Conn M Pin
5
10A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3033-W06400
Middle Size
Assembly type
M Conn M Pin
6
10A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3033-W07300
Middle Size
Assembly type
M Conn M Pin
7
5A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3033-W08300
Middle Size
Assembly type
M Conn M Pin
8
5A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3033-W09300
Middle Size
Assembly type
M Conn M Pin
9
5A
IP67
2CM3004/3032
2CM3000-W0000W 2CM3000-W0000D
2CM3036-W03600H
Middle Size
Assembly type
F Conn M Pin
3
16/20A
IP67
2CM3014
2CM3000-W0000W 2CM3000-W0000D
2CM3036-W03602H
Middle Size
Assembly type
F Conn M Pin
3
16/20A
IP67
2CM3137
2CM3000-W0000W 2CM3000-W0000D
2CM3036-W04400H
Middle Size
Assembly type
F Conn M Pin
4
10A
IP67
2CM3014
2CM3000-W0000W 2CM3000-W0000D
2CM3036-W09E00
Middle Size
Assembly type
F Conn M Pin
2+7
20A+2A
IP67
2CM3012/3014/3037
2CM3000-W0000W 2CM3000-W0000D
2CM3037-W09E00
Middle Size
Assembly type
M Conn F Pin
2+7
20A+2A
IP67
2CM3016/3036
2CM3000-W0000W 2CM3000-W0000D
2CM3133-W03600H
Middle Size
Panel solder Rear Mount
M Conn M Pin
3
16/20A
IP67
2CM3010-W03601H
2CM3000-W0000W 2CM3000-W0000D
2CM3137-W03600H
Middle Size
Panel solder Rear Mount Solder Type
M Conn F Pin
4
16/21A
IP67
2CM3036-W03602H
2CM3000-W0000W 2CM3000-W0000D
2CM3032-W02401H
Middle Size
Assembly type
F Conn F Pin
2
10A
IP67
2CM3002/3024/3033
2CM3000-W0000W 2CM3000-W0000D
2CM3020-W05EA0H
Middle Size
Panel Mount 180°solder type
M Conn F Pin
2+3
20A+2A
IP67
2CM3016
Cap included
2CM3020-W06EA0H
Middle Size
Panel Mount 180°solder type
M Conn F Pin
2+4
20A+5A+2A
IP67
2CM3016
Cap included
2CM3016-W05E00H
Middle Size
Plug-Molded With Cable
M Conn M Pin
2+3
20A+2A
IP67
2CM3020
-
2CM3016-W06E00H
Middle Size
Plug-Molded With Cable
M Conn M Pin
2+4
20A+5A+2A
IP67
2CM3020
-
加入咨询表单
SEARCH
产品进阶筛选
选择类别
DC Power Jack 連接器
Audio Jack 連接器
USB Type-C 連接器
USB3.0 / USB2.0 連接器
RJ45 Transformer 連接器
HDMI 連接器
Circular 圓形防水連接器
Quick-Lock 快鎖式防水連接器
M-Series 防水連接器
USB 防水連接器
USB Charger 防水連接器
RJ45 防水連接器
Cable Gland 防水連接器
NMEA2000 船用電子防水連接器
Energy Storage 儲能大電流防水連接器
LEV (E-bike) 電動車用防水連接器
筛选条件
M12 Sensor (Field Installable (Solder)) Connector
M12 Sensor (Molded with Cable) Connector
M12 Sensor (Panel Front Mount) Connector
M12 Sensor (Panel Rear Mount) Connector
M12 Sensor (Socket with Cable) Connector
M12 Sensor I Adaptor
M12 Sensor Waterproof Cap
Molding with cable Straight type
Panel Mount PCB Type
Panel Mount Solder Type
180° Screw Mating; PU Cable; Cable ODØ: max 7.0mm
180° Screw Mating; PVC Cable; Cable ODØ: max 7.0mm
90° Screw Mating; PU Cable; Cable ODØ: max 6.0mm
90° Screw Mating; PU Cable; Cable ODØ:max 6.0mm
90° Screw Mating; PVC Cable; Cable ODØ: max 6.0mm
Accessory of M12 Connector
Female CONN. Female PIN
Hexagon Backshell, Panel Thickness: max 3.5mm; Panel Cut: Ø15.4mm x 13.7mm
Male CONN. Male PIN
Male CONN. Male PIN(Non-foolproof key)
Male CONN. Male PIN(Screw NUT：Brass)
PCB Pin; Front Mounting; Hexagon Backshell; Panel Thickness: max 4.0mm; Panel Cut: Ø15.2mm x 13.6mm
PCB Pin; Front Mounting; Hexagon Backshell; Panel Thickness: max 4.0mm; Panel Cut: Ø16.1mm x 13.6mm
PCB Pin; Front Mounting; Hexagon Backshell; Panel Thickness: max 4.5mm; Panel Cut: Ø15.2mm x 13.6mm
Screw Mating; Cable ODØ: max 6.0mm
Screw Mating; Seala for Cable OD Ø4.0mm~6.5mm
Solder Pin; Front Mounting; Hexagon Backshell; Panel Thickness: max 4.0mm; Panel Cut: Ø15.2mm x 13.6mm
Solder Pin; Front Mounting; Hexagon Backshell; Panel Thickness: max 4.0mm; Panel Cut: Ø15.4mm x 13.7mm
Solder Pin; Front Mounting; Hexagon Backshell; Panel Thickness: max 4.5mm; Panel Cut: Ø15.2mm x 13.6mm
Solder Pin; Rear Mounting; Hexagon Backshell; Panel Thickness: max 3.5mm; Panel Cut: Ø15.2mm x 13.6mm
Solder Pin; Rear Mounting; Hexagon Backshell; Panel Thickness: max 5.0mm; Panel Cut: Ø15.2mm x 13.6mm
---
2
3
3 Pins
3,4,5 Pins
4
4 Pins
4,5 Pins
5
6
8
8 Pins
---
2A, A-Code
2A, D-Code
5A, A-Code
5A, D-Code
60V/1.5A
60V/1A
60V/2A
60V/5A
IP65, IP67
IP67
IP68
---
2ME3003-W04200H 2ME3005-W04200H 2ME3012-W04200H
2ME3003-W05200H 2ME3005-W05200H 2ME3012-W05200H
2ME3005-W08200H 2ME3010-W08200H
2ME3005-W08200H 2ME3012-W08200H
2ME3010-W023XXH
2ME3010-W033XXH
2ME3010-W04200H
2ME3010-W04303H
2ME3010-W04318H
2ME3010-W05200H
2ME3010-W06200H
Female conn
Male conn
Male to Male
2ME3000-W0000WH
N/A
Right angle
Vertical
-2.1
-1.8
-1.77
-1.45
-1.1
-0.8
-0.65
0
0.5
0.8
0.83
1.3
1.38
1.9
2
2.25
3.5
4
5.5
5.72
6
6.3
6.5
6.55
6.6
7.6
10
N/A
0.85
1.95
2.35
2.4
2.5
2.6
2.7
2.8
3
3.53
3.7
4.05
4.25
4.27
5
5.25
6.05
7.2
8
9.5
9.75
11
14.5
15.8
N/A
10A/ 20V
11.5A/ 20V
20A/ 20V
3.9A/ 14V
3A/ 16V
3A/ 19V
3A/ 20V
4A/ 20V
5A/ 20V
5A/ 24V
5A/ 26V
7A/ 20V
8A/ 20V
Micro
Standard
A
AB
B
Normal
Normal-Flag
Normal-Stack
Reverse
Reverse-Stack
Vertical
Normal
Sinking
Power Connector, for Battery Charging, 90° Molded with Cable
Power Connector, for Battery Charging, 90° Panel Mount Type
Power Connector, for Battery Charging, Molded with Cable
Power Connector, for Battery Charging, Panel Mount Type
Power Connector, for Battery Discharging, 90° Molded with Cable
Power Connector, for Battery Discharging, Panel Mount Type
Power Connector, for Motor and Controller, Molded with Cable
Signal Connector, for Sensor and Display, M12, Molded with Cable, Screw Mating
Signal Connector, for Sensor and Display, M5, Molded with Cable, Screw Mating
Signal Connector, for Sensor and Display, Molded with Cable
Signal Connector, for Sensor and Display, Panel Mount Type
Female/ Female
Female/ Male
Male/ Female
Male/ Male
11 Pins
2+1 Pins; 2+2 Pins; 2+3 Pins
2+1+3 Pins
2+2 Pins
2+3 Pins
2+3 Pins; 2+4 Pins
2+4 Pins
2+5 Pins
3 Pins
3+3 Pins
3+6 Pins
3/ 4/ 5 Pins
4 Pins
6 Pins
7 Pins
8 Pins
10A
10A+2A
10A+5A
15A+2A
15A+5A
1A
20A+2A
20A+5A+2A
2A
30A+2A
30A+5A
3A
5A
5A+2A
IP65, IP66, IP67
N/A
N/A
Female
Male
1000V
1500V
600V
120A
200A
250A
350A
70A
90A
-40C°~70°C
-40˚C~+125˚C
Block
Orange
Red
NMEA2000 Connector, Power T Cable
NMEA2000 Connector, T Adaptor
NMEA2000 Connector, Termination Resistor
NMEA2000 Double Ended Connector
NMEA2000 Single Ended Connector
NMEA 2000 certificated
NMEA 2000 certificated; 180° Screw Mating
NMEA 2000 certificated; Molded with Cable; 180° Screw Mating
NMEA2000 certificated
--
Female conn
Female to Male
Male conn
5A
5 Pins
IP67
N/A
M12*1.25
M16*1.5
M18*1.5
M20*1.5
M25*1.5
Seal for cable OD6.0~9.0 mm
Cable Range 4.0~6.0 mm / WIRE RANGE22~18AWG
Cable Range 6.0~10.0 mm (WIRE RANGE18-14AWG)
Cable Range 6.0~10.0 mm WIRE RANGE18-14AWG
Cable Range 6.0~9.0 mm / WIRE RANGE22~18AWG
Cable Range 6.5~11.2 mm
Cable Range 7.0~10.0 mm WIRE RANGE16~22AWG
Seal for cable OD10~16 mm
Seal for cable OD3~4 mm
Seal for cable OD3~6 mm
Seal for cable OD4~6.5 mm
Seal for cable OD5.5~11.2 mm
Seal for cable OD8~16 mm
2
3
4
6
10
15A
IP67
IP68
Accessory (Adaptor, Cap, Cover)
Cat. 5e
Cat. 6
Cat. 6a
Cat.5e
Assembly Waterproof RJ45 cat. 6a Through Coupler - Female to Female；For Cable ODØ：5.0mm~7.0mm
For 3 Point Lock
For Screw Lock
Mini Plug Cat 5e UTP Assembly
Mini Plug Cat 5e UTP Molding With Cable
Panel Cat 6a STP Through Coupler - Female to Female 3 Point Lock
Panel Mount CAT5E FTP JACK 3 Point Lock Solder Type With Cable
Panel Mount CAT5E STP JACK Screw Lock Solder Type With Cable End Cut 500mm
Panel Mount Cat 5e STP Through Coupler - Female to Female Screw Type
Panel Mount Cat5e PCB Type,Screw Type
Panel Mount Cat5e Screw Type With Wafer For Cable
Panel Mount Cat6 STP Plastic CONN For PCB Screw Type
Panel(Metal) Mount CAT5E STP JACK Screw Lock Solder Type With Cable
Plug Cat 5e 90 degrees Molding With Cable 3 Point Lock
Plug Cat 5e 90 degrees Molding With Cable Screw Lock
Plug Cat 6a FTP Field Installable 3 Point Lock
Plug Cat5e Assembly 3 Point Lock (Cable OD3.5-5.5)
Plug Cat5e Assembly(Cable OD4.5-6.3)
Plug Cat6 STP Field Installable
Plug Cat6 UTP Field Installable
Plug assembly M25*1.5
8
N/A
125V/1.5A
N/A
IP67
IP67(When Mated)
2TJ3000/3001/3002
2TJ3001-W05110H
2TJ3003
2TJ3003 Panel Screw type
2TJ3003-W051P9H
2TJ3005-W05117H
2TJ3006/3009
2TJ3007/3008
2TJ3016/3017/3018/3021/3024
2TJ3020-W05100H
2TJ3021-W05100H
2UB/2TJ Panel Screw type
N/A
2UB30001-W0000W
2UB3001-W0000W
2UB3001-W0009WH
Dual Ports with USB 2.0 Type-A (QC3.0) and USB Type-C (PD3.0);
Dual Ports with USB 2.0 Type-A;
Single Port with USB 2.0 Type-A (QC3.0);
Power Input: 12V; Power Output: 5V/2.1A; Panel Thickness: max 3.0mm
Power Input: 12V; Power Output: 5V/3A, 9V/2A, 12V/1.5A; Panel Thickness: max 4.5mm
Power Input: 12V~48V; Power Output: 5V/4.2A (2.1A+2.1A), 5V/4.8A (2.4A+2.4A); Panel Thickness: max 3.0mm
IP66, IP67
IPX5, IP66, IP67
For 3 Point lock
For Screw Type
Panel Molding Type +Cable (Circular Larger size lock type)
Panel Molding Type +Cable+USB2.0 Plug
Panel PCB TYPE
Panel PCB TYPE For USB2.0 function
Panel Solder TYPE +Cable
Plug With Cable 90 Degrees Molding Type
Plug With Cable Field installable Type
Plug With Cable Molding Type
Plug With Cable Molding Type (Circular Larger size lock type)
Plug With Cable Molding Type For USB2.0 function
4
9
24
N/A
20V/5A
30V /1A
N/A
IP67
IP67(When Mated)
2UB3001
2UB3003
2UB3012-W051XXH
2UB3031
2UB3040
2UP3000/3002/3005
2UP3004
2UP3014-W051XXH
2UP3032
2UP3040
2UB3001-W0000W
2UB3001-W0009WH
Cap included 2CG3000-W0000W
Cap included 2UB3001-W0000W
Accessory (Adaptor, Cap, Cover)
Assembly type
Panel Mount 180°PCB type
Panel Mount 180°solder type
Panel Mount solder Push Lock type
Plug-Molded With Cable Push Lock type
F Conn F Pin
F Conn M Pin
M Conn F Pin
M Conn M Pin
2
3
4
5
7
8
9
10A
15A
16/20A
5A
IP67
2CM3004/3032
2QM3000/2QM3002
2QM3002
2QM3002/3024/3033
2QM3004
2QM3004/3032
2QM3012
2QM3014
2QM3016
2QM3016/2QM3036
2QM3024
2QM3036
180° Lock Mating; Cable ODØ: max 7.5mm
90° Lock Mating; Cable ODØ: max 6.5mm
90° Lock Mating; Cable ODØ: max 7.5mm
Accessory (Adaptor, Cap, Cover)
Accessory of Circular Standard Connector
Assembly type
Circular Large (Molded with Cable) Connector
Circular Large (Panel Mount) Connector
Circular Large, Waterproof Cap
Lock Mating; Cable OD Ø4.0mm~Ø6.5mm
Lock Mating; Cable OD Ø4.5mm~Ø7.0mm
Lock Mating; PCB Pin; Panel Thickness: max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
Lock Mating; Panel Thickness: max 2.0mm; Panel Cut: Ø15.6mm x 14.8mm
Lock Mating; Solder Pin; Panel Thickness: max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
Lock Mating; Solder Pin; Square Backshell
Lock mating; PCB pin; Panel Thickness: max 3.2mm; Panel Cut: Ø10.9mm x 10.4 mm
Lock mating; Solder pin; Panel thickness: max 3.2mm; Panel Cut: Ø10.9mm x 10.4 mm
Panel solder Rear Mount
Panel solder Rear Mount Solder Type
Panel Mount 180°PCB type
Panel Mount 180°solder type
Plug-Molded With Cable
180° Lock Mating; Cable ODØ: Max 13.5mm
180° Screw Mating; Cable ODØ: max 13.5mm
Accessory for Circular Large Connector
F Conn F Pin
F Conn M Pin
Jumper Cable; 180° Lock Mating; Cable ODØ: max 13.5mm
Lock Mating; PCB Pin; Panel Thickness: max 3.5mm; Panel Cut: Ø25.6mm x 23.5mm
Lock Mating; Solder Pin, Panel Thickness: max 3.5mm; Panel Cut: Ø25.6mm x 23.5mm
Lock Mating; Solder Pin; Panel Thickness: max 3.5mm; Panel Cut: Ø25.6mm x 23.5mm
M Conn F Pin
M Conn M Pin
---
10,12 Pins
18 Pins
2
2 Pins
2+2
2+2 Pins
2+3
2+4
2+7
2,3,4 Pins
2/4/4 Pins
3
3 Pins
3,4,5,6 Pins
4
4+2 Pins
4,5,6,7,8 Pins
4/6/6 Pins
5
6
7
8
9
10
12
14
18
8 Pins
9+3 Pins
---
10A
16/20A
16/21A
16A+2A
20A+2A
20A+5A+2A
2A
5+10A
5A
5A+10A
5A+20A
N/A
IP55
IP66, IP67
IP67
IP68
N/A
---
2CG3004/3032
2CM3000/3002
2CM3000/3002/3012/3014/3133
2CM3000/3002/3012/3014/3133/3033
2CM3000/3002/3024/3033
2CM3000/3002/3033
2CM3002
2CM3002/3024
2CM3002/3024/3033
2CM3002/3033
2CM3004
2CM3004/3010
2CM3004/3010/3032
2CM3004/3032
2CM3010-W03601H
2CM3012/3014
2CM3012/3014/3037
2CM3014
2CM3016
2CM3016/3036
2CM3020
2CM3032
2CM3036
2CM3036-W03602H
2CM3133
2CM3137
Female/ Female
Female/ Male
Female/ Male&Female
Male to Female
Male/ Female
Male/ Male
Male/ Male&Female
2CM3000-W0000W 2CM3000-W0000D
Cap included
Normal-Above
Normal-Sinking
Reverse-Sinking
Vertical-Above
-2.75
-2
-1.73
-1.4
-1.1
-0.3
0.6
1.52
2.25
2.4
4.2
Dual Row DIP
Single Row SMT
1.4
2.1
Combo
Normal
Reversed
Vertical
Mid Mount
Top Mount
1.8
2.1
2.3
2.66
2.7
3.55
3.9
4
4.2
4.3
4.45
4.7
4.8
5.1
5.25
5.6
9.1
9.85
10.2
11.45
13.35
13.4
13.45
13.5
13.59
13.6
13.8
13.83
14.5
17.02
21.1
25.19
25.55
25.75
Right angle
Vertical
-1.55
-1.4
0.58
0.88
1.32
1.57
1.58
1.82
3.4
1.56
1.57
2.16
2.71
3.14
3.15
3.41
3.5
5.18
12
Dual SMT
SMT
16
24
TBT4
TBT5
USB2.0
Normal
Sinking
Right angle
Vertical
3.5
3
4
5
GMRL or MGRL
MGRL
Universal Type
-2.4
-2.35
-2
-1.7
-1.5
-1.06
0.4
0.5
0.95
1.95
2.1
2.25
2.7
2.75
3.05
3.4
4
4.5
6.45
Y
N
N/A
Y
N/A
OD1Φ: 2.5mm
OD1Φ: 4.0mm
OD1Φ: 4.5mm
OD1Φ: 5.5mm
-2.92
-2.36
-1.75
-1.15
-0.7
-0.42
-0.35
0
1.1
1.225
1.51
2.9
3.4
3.45
4.13
4.75
7.25
清除所有条件
确认搜寻
NOTICE 提示訊息
請先登入會員，以繼續執行本次操作！
