具備高耐用性與優異防水性能，可滿足大電流與嚴苛環境下的穩定連接需求。廣泛應用於工業設備、自動化系統、戶外設備及重工業應用。
Product Overview
产品简介
大尺寸高功率設計
高防水防塵等級
強化鎖固與機械強度
产品介绍
规格表
相关应用
产品介绍
规格表
相关应用
Product Description
产品介绍
連接器型式: Circular Large Size
防水等級: IP67 Waterproof Connector
組裝類型: Panel Mount, Molded with Cable
溫度範圍:[Conn. Body]-40°C~100°C
材質: [Conn. Body] Nylon+ GF, PBT, UL Recognized; [Pin] Copper Alloy, Gold Plated
端子型式
適用電流: 5A, 5A+20A

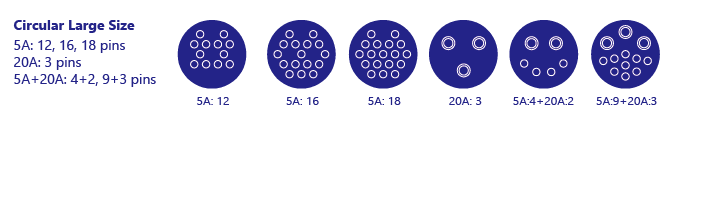

端子數: 2, 3, 12, 16, 18, 4+2, 9+3 contacts
Specifications
规格表
产品筛选
99+
汇出筛选结果
关键字搜寻
筛选条件
Circular Large (Molded with Cable) Connector
Circular Large (Panel Mount) Connector
Circular Large, Waterproof Cap
180° Lock Mating; Cable ODØ: Max 13.5mm
180° Lock Mating; Cable ODØ: max 13.5mm
180° Screw Mating; Cable ODØ: max 13.5mm
Accessory for Circular Large Connector
Jumper Cable; 180° Lock Mating; Cable ODØ: max 13.5mm
Lock Mating; PCB Pin; Panel Thickness: max 3.5mm; Panel Cut: Ø25.6mm x 23.5mm
Lock Mating; Solder Pin, Panel Thickness: max 3.5mm; Panel Cut: Ø25.6mm x 23.5mm
Lock Mating; Solder Pin; Panel Thickness: max 3.5mm; Panel Cut: Ø25.6mm x 23.5mm
---
18 Pins
4+2 Pins
9+3 Pins
---
5A
5A+20A
IP67
---
Female/ Female
Female/ Male
Female/ Male&Female
Male to Female
Male/ Female
Male/ Male
Male/ Male&Female
确认搜寻
No Matching Results
筛选无结果
目前无符合条件的产品，请调整或重新设定筛选条件。
左右拖拉查看
产品图片
产品名称
型式说明
Type-1
Type-2
PIN
Rating
Waterproof Rating
Matching
Accessories
其他功能
2CG3000-W18300
Large Size
Circular Large (Panel Mount) Connector
Lock Mating; PCB Pin; Panel Thickness: max 3.5mm; Panel Cut: Ø25.6mm x 23.5mm
18 Pins
5A
IP67
Male/ Male
-
2CG3002-W18300
Large Size
Circular Large (Panel Mount) Connector
Lock Mating; Solder Pin; Panel Thickness: max 3.5mm; Panel Cut: Ø25.6mm x 23.5mm
18 Pins
5A
IP67
Male/ Male
-
2CG3002-W12F00
Large Size
Circular Large (Panel Mount) Connector
Lock Mating; Solder Pin; Panel Thickness: max 3.5mm; Panel Cut: Ø25.6mm x 23.5mm
9+3 Pins
5A+20A
IP67
Male/ Male&Female
-
2CG3012-W18300
Large Size
Circular Large (Panel Mount) Connector
Lock Mating; PCB Pin; Panel Thickness: max 3.5mm; Panel Cut: Ø25.6mm x 23.5mm
18 Pins
5A
IP67
Male/ Female
-
2CG3015-W06F00
Large Size
Circular Large (Panel Mount) Connector
Lock Mating; Solder Pin, Panel Thickness: max 3.5mm; Panel Cut: Ø25.6mm x 23.5mm
4+2 Pins
5A+20A
IP67
Male/ Female
-
2CG3037-W12F00
Large Size
Circular Large (Panel Mount) Connector
Lock Mating; Solder Pin; Panel Thickness: max 3.5mm; Panel Cut: Ø25.6mm x 23.5mm
9+3 Pins
5A+20A
IP67
Female/ Male&Female
-
2CG3004-W12F06
Large Size
Circular Large (Molded with Cable) Connector
Jumper Cable; 180° Lock Mating; Cable ODØ: max 13.5mm
9+3 Pins
5A+20A
IP67
Male to Female
-
2CG3004-W18300
Large Size
Circular Large (Molded with Cable) Connector
180° Lock Mating; Cable ODØ: Max 13.5mm
18 Pins
5A
IP67
Female/ Female
-
2CG3017-W06F01
Large Size
Circular Large (Molded with Cable) Connector
180° Screw Mating; Cable ODØ: max 13.5mm
4+2 Pins
5A+20A
IP67
Female/ Male
-
2CG3024-W12F01
Large Size
Circular Large (Molded with Cable) Connector
180° Lock Mating; Cable ODØ: max 13.5mm
9+3 Pins
5A+20A
IP67
Male/ Male&Female
-
2CG3000-W0000W
Large Size
Circular Large, Waterproof Cap
Accessory for Circular Large Connector
---
---
IP67
---
-
加入咨询表单
Related Applications
相关应用
