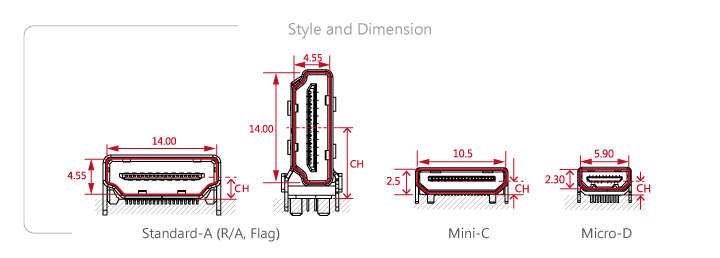

- Connector Type: Standard-A, Mini-C, and Micro-D Type
- Mounting Orientation: Normal, Reverse, and FlagPCB
- Mounting: DIP, SMT, DIP+SMT Type
- Mounting Type: Top Mount, Mid Mount
江苏省苏州市吴中区胥口镇胥江工业园新峰路509号 (邮区:215164)

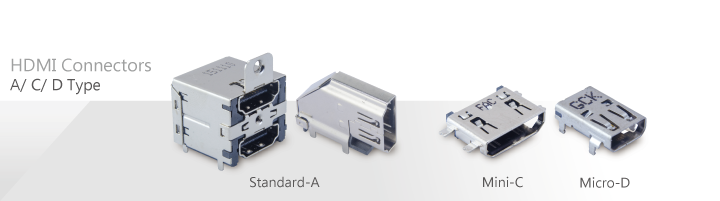

HDMI 連接器
支援高畫質影音訊號的同步傳輸，提供穩定且清晰的視聽效果。廣泛應用於消費性電子、顯示設備、電腦周邊及多媒體系統。
Product Overview
产品简介
高畫質影音傳輸
高速數位訊號介面
標準化通用設計
产品介绍
规格表
相关应用
产品介绍
规格表
相关应用
Product Description
产品介绍
Specifications
规格表
产品筛选
99+
汇出筛选结果
关键字搜寻
筛选条件
Normal-Above
Normal-Sinking
Reverse-Sinking
Vertical-Above
-2.75
-2
-1.73
-1.4
-1.1
-0.3
0.6
1.52
2.25
2.4
4.2
Dual Row DIP
Single Row SMT
1.4
2.1
确认搜寻
No Matching Results
筛选无结果
目前无符合条件的产品，请调整或重新设定筛选条件。
左右拖拉查看
产品图片
产品名称
型式说明
Mounting Type
Center Height
PIN Type
Verison
其他功能
2HE1794-101211F
Type A
Reverse-Sinking
-0.3
Dual Row DIP
2.1
2HE1814-000111F
Type A
Vertical-Above
-
Dual Row DIP
2.1
2HE1819-000111F
Type A
Reverse-Sinking
1.52
Dual Row DIP
2.1
2HE3Y32-001111F
Type D
Reverse-Sinking
-2
Dual Row DIP
1.4
2HE1816-000111F
Type A
Normal-Above
2.4
Dual Row DIP
2.1
2HE1781-101111F
Type A
Reverse-Sinking
-2.75
Dual Row DIP
2.1
2HE1805-000111F
Type A
Normal-Sinking
2.25
Dual Row DIP
2.1
2HE1782-310111F
Type A
Reverse-Sinking
-1.73
Dual Row DIP
2.1
2HE1823-010211F
Type A
Vertical-Above
-
Single Row SMT
2.1
2HE1783-500111F
Type A
Reverse-Sinking
-1.1
Dual Row DIP
2.1
2HE1792-201111F
Type A
Reverse-Sinking
-1.4
Dual Row DIP
2.1
2HE1829-000111F
Type A
Reverse-Sinking
0.6
Dual Row DIP
2.1
2HE1820-000111F
Type A
Normal-Above
4.2
Dual Row DIP
2.1
