With excellent waterproof and durability performance, these connectors ensure stable signal and power transmission for industrial, automation, outdoor, and electronic applications.
Product Overview
Product Overview
Standard Circular Design
High Waterproof and Dustproof Rating
Robust and Durable Locking Mechanism
Product Description
Specification Sheet
Related Applications
Product Description
Specification Sheet
Related Applications
Product Description
Product Description
連接器型式: Circular Standard Size
組裝類型:: Panel Mount, Molded with Cable, Field Installable
防水等級: IP65~IP67 Waterproof Connectors
溫度範圍: [Conn. Body] -40°C~100°C
材質: [Conn. Body] Nylon+ GF, PBT, UL Recognized; [Pin] Copper Alloy, Gold Plated

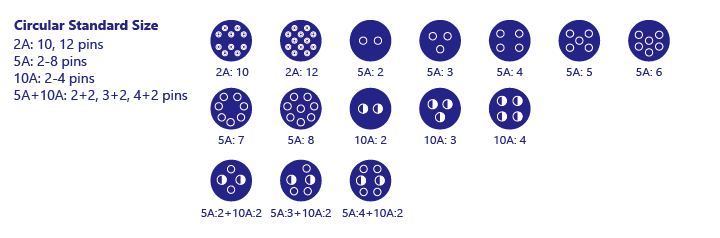

端子型式
適用電流: 2A, 5A, 10A, 5A+10A
端子數: 2~8, 10, 12 contacts
Specifications
Specification Sheet
Filter Products
99+
Export Filtered Results
Search by Keyword
Filter Item
180° Lock Mating; Cable ODØ: max 7.5mm
90° Lock Mating; Cable ODØ: max 6.5mm
90° Lock Mating; Cable ODØ: max 7.5mm
Accessory of Circular Standard Connector
Lock Mating; Cable OD Ø4.0mm~Ø6.5mm
Lock Mating; Cable OD Ø4.5mm~Ø7.0mm
Lock Mating; PCB Pin; Panel Thickness: max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
Lock Mating; Panel Thickness: max 2.0mm; Panel Cut: Ø15.6mm x 14.8mm
Lock Mating; Solder Pin; Panel Thickness: Max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
Lock Mating; Solder Pin; Panel Thickness: max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
Lock Mating; Solder Pin; Square Backshell
---
10,12 Pins
2 Pins
2+2 Pins
2,3,4 Pins
2/4/4 Pins
3 Pins
4,5,6,7,8 Pins
4/6/6 Pins
---
10A
2A
5+10A
5A
5A+10A
IP55
IP66, IP67
IP67
IP68
---
Female/ Female
Female/ Male
Male/ Female
Male/ Male
Confirm
No Matching Results
No results found
No products match your filters. Please adjust or reset your filters.
Swipe left or right to view
Product Image
Product
Description
Type-1
Type-2
PIN
Rating
Waterproof Rating
Matching
Accessories
Additional Features
2CT3000-W1X200
Standard
Lock Mating; PCB Pin; Panel Thickness: max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
-
10,12 Pins
2A
IP67
Male/ Male
-
2CT3000-W0X300
Standard
Lock Mating; PCB Pin; Panel Thickness: max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
-
4,5,6,7,8 Pins
5A
IP67
Male/ Male
-
2CT3000-W0X400
Standard
Lock Mating; PCB Pin; Panel Thickness: max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
-
2,3,4 Pins
10A
IP67
Male/ Male
-
2CT3002-W1X200
Standard
Lock Mating; Solder Pin; Panel Thickness: max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
-
10,12 Pins
2A
IP67
Male/ Male
-
2CT3002-W0X300
Standard
Lock Mating; Solder Pin; Panel Thickness: max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
-
4,5,6,7,8 Pins
5A
IP67
Male/ Male
-
2CT3002-W0X400
Standard
Lock Mating; Solder Pin; Panel Thickness: max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
-
2,3,4 Pins
10A
IP67
Male/ Male
-
2CT3014-W03400
Standard
Lock Mating; Solder Pin; Panel Thickness: Max 4.0mm; Panel Cut: Ø15.6mm x 14.8mm
-
3 Pins
10A
IP67
Male/ Female
-
2CT3020-W034A0
Standard
Lock Mating; Solder Pin; Square Backshell
-
3 Pins
10A
IP67
Male/ Female
-
2CT3020-W048A0
Standard
Lock Mating; Solder Pin; Square Backshell
-
2+2 Pins
5+10A
IP55
Male/ Female
-
2CT3040-W03401H
Standard
Lock Mating; Panel Thickness: max 2.0mm; Panel Cut: Ø15.6mm x 14.8mm
-
3 Pins
10A
IP67
Male/ Female
-
2CT3004-W1X200
Standard
180° Lock Mating; Cable ODØ: max 7.5mm
-
10,12 Pins
2A
IP66, IP67
Female/ Female
-
2CT3004-W0X300
Standard
180° Lock Mating; Cable ODØ: max 7.5mm
-
4,5,6,7,8 Pins
5A
IP66, IP67
Female/ Female
-
2CT3004-W0X400
Standard
180° Lock Mating; Cable ODØ: max 7.5mm
-
2,3,4 Pins
10A
IP66, IP67
Female/ Female
-
2CT3010-W1X200
Standard
90° Lock Mating; Cable ODØ: max 6.5mm
-
10,12 Pins
2A
IP66, IP67
Female/ Female
-
2CT3010-W0X300
Standard
90° Lock Mating; Cable ODØ: max 6.5mm
-
4,5,6,7,8 Pins
5A
IP66, IP67
Female/ Female
-
2CT3010-W0X400
Standard
90° Lock Mating; Cable ODØ: max 6.5mm
-
2,3,4 Pins
10A
IP66, IP67
Female/ Female
-
2CT3016-W03401
Standard
180° Lock Mating; Cable ODØ: max 7.5mm
-
3 Pins
10A
IP66, IP67
Female/ Male
-
2CT3016-W03402
Standard
180° Lock Mating; Cable ODØ: max 7.5mm
-
3 Pins
10A
IP66, IP67
Female/ Male
-
2CT3016-W04801
Standard
180° Lock Mating; Cable ODØ: max 7.5mm
-
2+2 Pins
5A+10A
IP55
Female/ Male
-
2CT3024-W0X300
Standard
180° Lock Mating; Cable ODØ: max 7.5mm
-
4,5,6,7,8 Pins
5A
IP66, IP67
Male/ Male
-
2CT3024-W0X400
Standard
180° Lock Mating; Cable ODØ: max 7.5mm
-
2,3,4 Pins
10A
IP66, IP67
Male/ Male
-
2CT3028-W0X300
Standard
90° Lock Mating; Cable ODØ: max 6.5mm
-
4,5,6,7,8 Pins
5A
IP66, IP67
Male/ Male
-
2CT3028-W0X400
Standard
90° Lock Mating; Cable ODØ: max 7.5mm
-
2,3,4 Pins
10A
IP66, IP67
Male/ Male
-
2CT3032-W1X200
Standard
Lock Mating; Cable OD Ø4.0mm~Ø6.5mm
-
10,12 Pins
2A
IP67
Female/ Female
-
2CT3032-W0X300
Standard
Lock Mating; Cable OD Ø4.0mm~Ø6.5mm
-
4,5,6,7,8 Pins
5A
IP67
Female/ Female
-
2CT3032-W0X400
Standard
Lock Mating; Cable OD Ø4.0mm~Ø6.5mm
-
2,3,4 Pins
10A
IP67
Female/ Female
-
2CT3032-W0X4A0
Standard
Lock Mating; Cable OD Ø4.5mm~Ø7.0mm
-
2 Pins
10A
IP68
Female/ Female
-
2CT3033-W0X300
Standard
Lock Mating; Cable OD Ø4.0mm~Ø6.5mm
-
4,5,6,7,8 Pins
5A
IP67
Male/ Male
-
2CT3033-W0X400
Standard
Lock Mating; Cable OD Ø4.0mm~Ø6.5mm
-
2,3,4 Pins
10A
IP67
Male/ Male
-
2CT3033-W0X4A0
Standard
Lock Mating; Cable OD Ø4.5mm~Ø7.0mm
-
2,3,4 Pins
10A
IP68
Male/ Male
-
2CT303Y-W04400
Standard
Accessory of Circular Standard Connector
-
4/6/6 Pins
10A
IP67
---
-
2CT303T-W02301H
Standard
Accessory of Circular Standard Connector
-
2/4/4 Pins
5A
IP67
---
-
2CT3004-W0000C
Standard
Accessory of Circular Standard Connector
-
---
---
IP67
---
-
2CT3024-W0000C
Standard
Accessory of Circular Standard Connector
-
---
---
IP67
---
-
