具備小型化設計與優異防水性能，可在嚴苛環境下提供穩定的訊號與電力傳輸。廣泛應用於工業自動化、感測器、通訊設備及戶外裝置。
Product Overview
产品简介
小型化精密設計
高防水防塵性能
可靠螺紋鎖固結構
产品介绍
规格表
相关应用
产品介绍
规格表
相关应用
Product Description
产品介绍

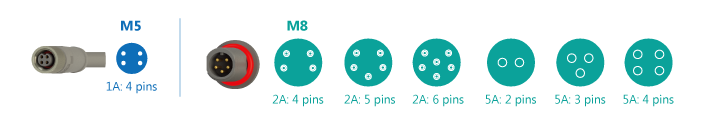

連接器型式: M5 Size, M8 Size
組裝類型: Panel Mount, Molded with Cable
防水等級: IP67 Waterproof Connector
溫度範圍: [Conn. Body]-40°C~100°C
材質: [Conn. Body] Nylon+ GF, PPE, TPU, UL Recognized; [Pin] Copper Alloy, Gold Plated
端子型式
適用電流: 1A, 2A, 5A
端子數: 2~6 contacts
Specifications
规格表
产品筛选
99+
汇出筛选结果
关键字搜寻
筛选条件
Molding with cable Straight type
Panel Mount PCB Type
Panel Mount Solder Type
Female CONN. Female PIN
Male CONN. Male PIN
Male CONN. Male PIN(Non-foolproof key)
Male CONN. Male PIN(Screw NUT：Brass)
2
3
4
5
6
8
60V/1.5A
60V/1A
60V/2A
60V/5A
IP67
2ME3003-W04200H 2ME3005-W04200H 2ME3012-W04200H
2ME3003-W05200H 2ME3005-W05200H 2ME3012-W05200H
2ME3005-W08200H 2ME3010-W08200H
2ME3005-W08200H 2ME3012-W08200H
2ME3010-W023XXH
2ME3010-W033XXH
2ME3010-W04200H
2ME3010-W04303H
2ME3010-W04318H
2ME3010-W05200H
2ME3010-W06200H
2ME3000-W0000WH
确认搜寻
No Matching Results
筛选无结果
目前无符合条件的产品，请调整或重新设定筛选条件。
左右拖拉查看
产品图片
产品名称
Type-1
Type-2
PIN
Rating
Waterproof Rating
Matching
Accessories
其他功能
2ME3003-W02302H
Panel Mount Solder Type
Male CONN. Male PIN
2
60V/5A
IP67
2ME3010-W023XXH
2ME3000-W0000WH
2ME3003-W03300H
Panel Mount Solder Type
Male CONN. Male PIN
3
60V/5A
IP67
2ME3010-W033XXH
2ME3000-W0000WH
2ME3003-W03301H
Panel Mount Solder Type
Male CONN. Male PIN(Non-foolproof key)
3
60V/5A
IP67
-
2ME3000-W0000WH
2ME3003-W04300H
Panel Mount Solder Type
Male CONN. Male PIN
4
60V/5A
IP67
2ME3010-W04303H
2ME3000-W0000WH
2ME3003-W04200H
Panel Mount Solder Type
Male CONN. Male PIN
4
60V/2A
IP67
2ME3010-W04200H
2ME3000-W0000WH
2ME3003-W05200H
Panel Mount Solder Type
Male CONN. Male PIN
5
60V/2A
IP67
2ME3010-W04200H
2ME3000-W0000WH
2ME3003-W06200H
Panel Mount Solder Type
Male CONN. Male PIN
6
60V/2A
IP67
2ME3010-W04200H
2ME3000-W0000WH
2ME3005-W02300H
Panel Mount PCB Type
Male CONN. Male PIN
2
60V/2A
IP67
2ME3010-W023XXH
2ME3000-W0000WH
2ME3005-W03300H
Panel Mount PCB Type
Male CONN. Male PIN
3
60V/2A
IP67
2ME3010-W033XXH
2ME3000-W0000WH
2ME3005-W04300H
Panel Mount PCB Type
Male CONN. Male PIN
4
60V/2A
IP67
2ME3010-W04303H
2ME3000-W0000WH
2ME3005-W04200H
Panel Mount PCB Type
Male CONN. Male PIN
4
60V/2A
IP67
2ME3010-W04200H
2ME3000-W0000WH
2ME3005-W05200H
Panel Mount PCB Type
Male CONN. Male PIN
5
60V/2A
IP67
2ME3010-W04200H
2ME3000-W0000WH
2ME3005-W06200H
Panel Mount PCB Type
Male CONN. Male PIN
6
60V/2A
IP67
2ME3010-W04200H
2ME3000-W0000WH
2ME3005-W08200H
Panel Mount PCB Type
Male CONN. Male PIN
8
60V/1A
IP67
2ME3010-W04200H
2ME3000-W0000WH
2ME3010-W04200H
Molding with cable Straight type
Female CONN. Female PIN
4
60V/2A
IP67
2ME3003-W04200H 2ME3005-W04200H 2ME3012-W04200H
-
2ME3010-W05200H
Molding with cable Straight type
Female CONN. Female PIN
5
60V/2A
IP67
2ME3003-W05200H 2ME3005-W05200H 2ME3012-W05200H
-
2ME3010-W06200H
Molding with cable Straight type
Female CONN. Female PIN
6
60V/2A
IP67
2ME3003-W05200H 2ME3005-W05200H 2ME3012-W05200H
-
2ME3010-W08200H
Molding with cable Straight type
Female CONN. Female PIN
8
60V/1.5A
IP67
2ME3005-W08200H 2ME3012-W08200H
-
2ME3012-W04200H
Molding with cable Straight type
Male CONN. Male PIN
4
60V/2A
IP67
2ME3010-W04200H
-
2ME3012-W04300H
Molding with cable Straight type
Male CONN. Male PIN(Non-foolproof key)
4
60V/2A
IP67
2ME3010-W04318H
-
2ME3012-W05200H
Molding with cable Straight type
Male CONN. Male PIN(Screw NUT：Brass)
5
60V/2A
IP67
2ME3010-W05200H
-
2ME3012-W06200H
Molding with cable Straight type
Male CONN. Male PIN
6
60V/2A
IP67
2ME3010-W06200H
-
2ME3012-W08200H
Molding with cable Straight type
Male CONN. Male PIN
8
60V/1.5A
IP67
2ME3005-W08200H 2ME3010-W08200H
2ME3000-W0000WH
